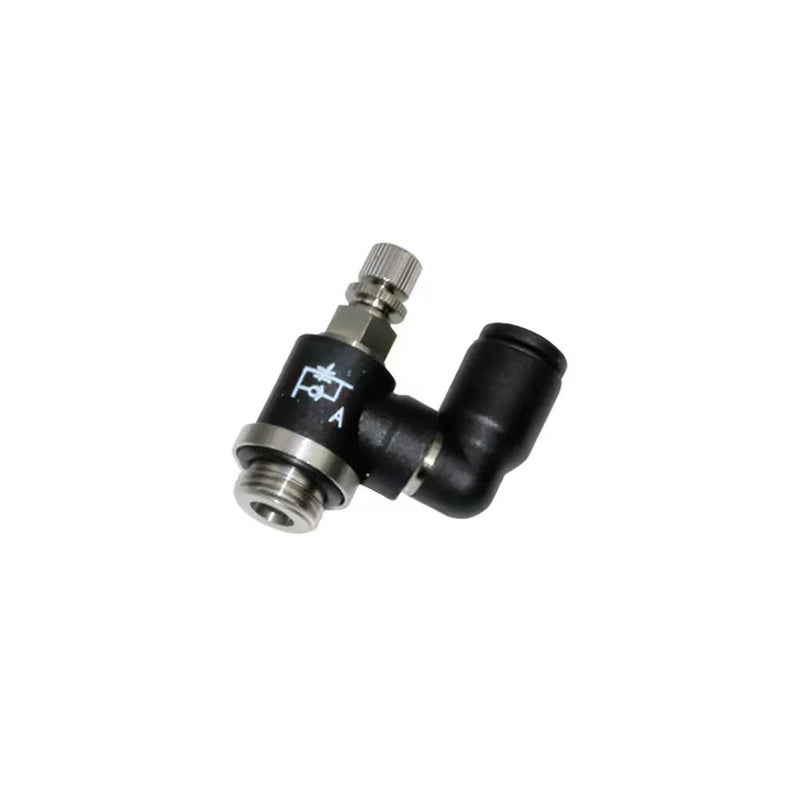

7640 04 20 by Parker | Legris Swivel Outlet Flow Control - Meter Out | 5/32" Push-to-Connect x 10-32 Male UNF Thread | 6 mm Hex | Multi-Directional | Nylon

7640 04 20 by Parker | Legris Swivel Outlet Flow Control - Meter Out | 5/32" Push-to-Connect x 10-32 Male UNF Thread | 6 mm Hex | Multi-Directional | Nylon | Pack of 10

$251.44 - $251.44
$251.44
$279.87
$279.87 - $279.87
$279.87

by Parker Hannifin
Flow Control – Swivel Outlet:7640/7645 - miniature swivel outlet flow control tube to NPT, UNF, or BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: 7640 04 20 Parker | 10 |
Series: 7640 Series
Shape (Orientation): Multi-Directional
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Swivel
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass thread
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 30° to 158° F (-1° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD UNF / NPT (C) F G H (min) H (max) H1 J L L1 Oz
7640 04 20 5/32" 10-32 6 mm .33" .96" 1.08" .55" .37" .73" .26" .39 Oz
7645 04 11 5/32" 1/8" 8 mm .33" 1.08" 1.20" .55" .45" .73" .33" .39 Oz
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
