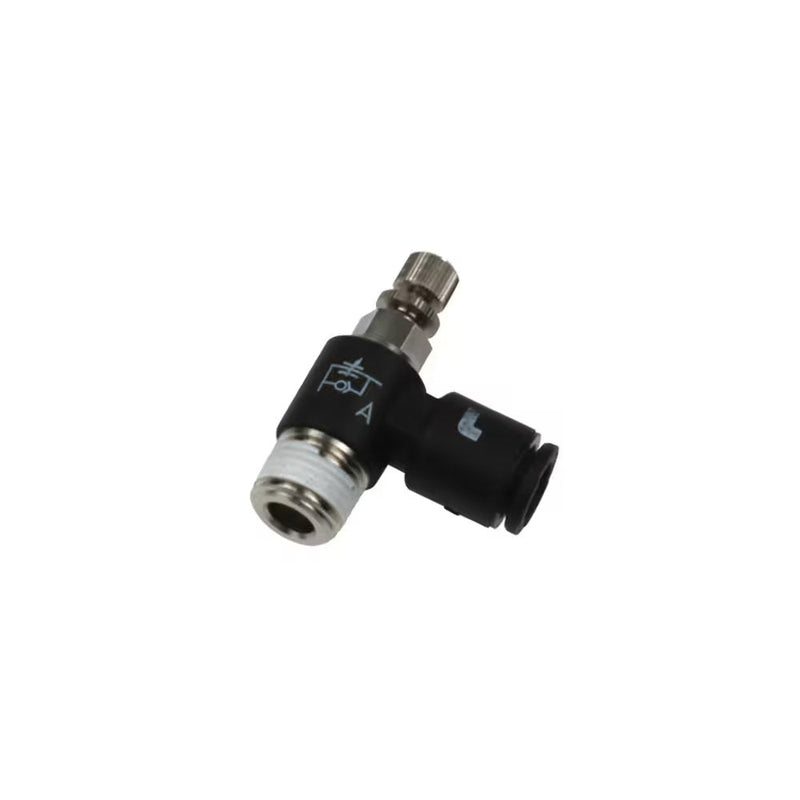

7668 56 11 by Parker | Legris Miniature Flow Control - Meter In | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 7 mm Hex | 90° Elbow | Nylon

7668 56 11 by Parker | Legris Miniature Flow Control - Meter In | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 7 mm Hex | 90° Elbow | Nylon | Pack of 10

$221.84 - $221.84
$221.84
$246.80
$246.80 - $246.80
$246.80

by Parker Hannifin
Flow Controls – Miniature Version:7665/7668 - miniature flow control fractional inch tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 7668 56 11 Parker | 10 |
Series: 7668 Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Mini/Micro Size
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass thread
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 30° to 158° F (-1° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number (Meter Out) Part Number (Meter In) ØD NPT (C) F H (min) H1 (max) J L Oz
7665 53 11 - 1/8" 1/8" 7 mm 1.26" 1.41" .45" .69" .42 Oz
7665 04 11 7668 04 11 5/32" 1/8" 7 mm 1.06" 1.16" .45" .71" .46 Oz
7665 56 11 7668 56 11 1/4" 1/8" 7 mm 1.06" 1.16" .45" .75" .64 Oz
7665 56 14 7668 56 14 1/4" 1/4" 8 mm 1.18" 1.28" .47" .77" .79 Oz
