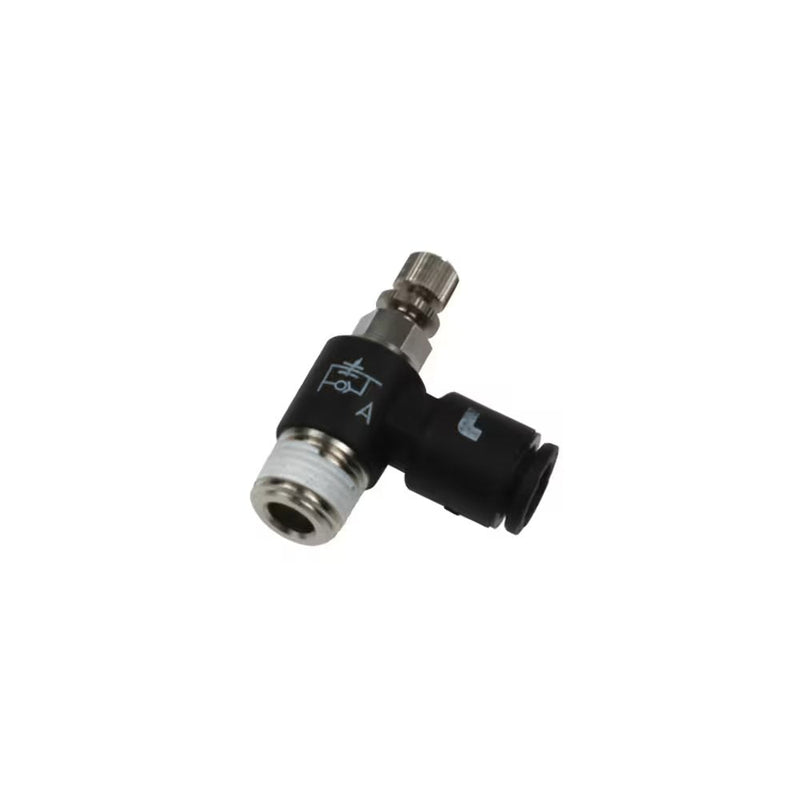

7668 04 11 by Parker | Legris Miniature Flow Control - Meter In | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 7mm Hex | 90° Elbow | Nylon | Pack of 10

Save $135.29

$338.22

$338.22 - $338.22

$338.22

$202.93

$202.93 - $202.93

$202.93

by Parker Hannifin
Flow Controls – Miniature Version:7665/7668 - miniature flow control fractional inch tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 7668 04 11 Parker \| 10 \|
Series:	7668 Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Mini/Micro Size

Product Features:	Glass-reinforced nylon 6.6 body Stainless steel gripping ring Nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated brass thread Nitrile D-Seal Silicone-Free
Markets:	Factory/Process Automation Life Science Food Processing Water and Beverage Petrochemical
Applications:	Packaging Filling Dispensing Bottling Pneumatic Circuits
Pressure Range	14.5 to 145 psi (1 to 10 bar)
Temperature Range	30° to 158° F (-1° to 70° C)
Compatible Tubing	Semi-Rigid Nylon Polyurethane 95 Durometer Shore A Fluoropolymer


Part Number (Meter Out)	Part Number (Meter In)	ØD	NPT (C)	F	H (min)	H1 (max)	J	L	Oz
7665 53 11	-	1/8"	1/8"	7 mm	1.26"	1.41"	.45"	.69"	.42 Oz
7665 04 11	7668 04 11	5/32"	1/8"	7 mm	1.06"	1.16"	.45"	.71"	.46 Oz
7665 56 11	7668 56 11	1/4"	1/8"	7 mm	1.06"	1.16"	.45"	.75"	.64 Oz
7665 56 14	7668 56 14	1/4"	1/4"	8 mm	1.18"	1.28"	.47"	.77"	.79 Oz
