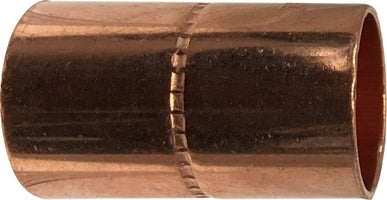

77204 (77-204) by Midland | Copper Fitting | Coupling (Socket) with Rolled Up Tube Stop | C x C | 1/2" ID | Straight

Save $0.14

$1.23

$1.23 - $1.23

$1.23

$1.09

$1.09 - $1.09

$1.09

Midland Industries
Copper Fitting - Wrot Solder Joint - Coupling (Socket) with Rolled Up Tube Stop - C x C

Inventory @ Manufacturers Warehouse: 49 Units

Quantity

Specifications for Variant SKU: 77204 Midland
Shape (Orientation):	Straight
Material(s):	Copper
Applicable Specs & Approvals:	NSF 61, ASTM B 88, ASTM B 306, ASTM A 306

Features:
Temp range 32° to 200°F Pressure @100°F: 1/8-1 : 500 PSI 1-1/4-2 : 400 PSI 2-1/2 - 3: 300 PSI
Specifications:
NSF - 61 Certified Alloy C12200
Symbol Of Joint Ends:
C = Solder joint fitting end made to receive copper tube diameter Ftg. = Solder joint fitting end made to copper tube diameter F = Internal ANSI Standard Taper Pipe Thread-Female M = External ANSI Standard Taper Pipe Thread-Male Threaded ends ANSI/ ASME B1. Solder ends ASTM B88

The Above Conforms To ASTM B 88 & ASTM B 306, A 306.

Crossover Series:
WC-400	100


Nominal Size	Joint Ends										Metal Thickness T (in)	Inside Diameter O (in)
	Male End					Female End
	Outside Diameter A (in)	Average Tolerance (mm)	Actual MIN (in)	O.D. MAX (in)		Inside Diameter F (in)	Average Tolerance (mm)	Actual MIN (in)	O.D. MAX (in)
1/8"	2/8"	0.03mm	2/8"	2/8"	3/8"	2/8"	0.03mm	2/8"	2/8"	3/8"	0	2/8"
1/4"	3/8"	0.03mm	3/8"	3/8"	3/8"	3/8"	0.03mm	3/8"	3/8"	3/8"	0	2/8"
3/8"	4/8"	0.03mm	4/8"	4/8"	3/8"	4/8"	0.03mm	4/8"	4/8"	3/8"	0	3/8"
1/2"	5/8"	0.03mm	5/8"	5/8"	4/8"	5/8"	0.03mm	5/8"	5/8"	3/8"	0	4/8"
5/8"	6/8"	0.03mm	6/8"	6/8"	5/8"	6/8"	0.03mm	6/8"	6/8"	5/8"	0	4/8"
3/4"	7/8"	0.03mm	7/8"	7/8"	6/8"	7/8"	0.03mm	7/8"	7/8"	5/8"	0	5/8"

Part Number	Nominal (ID)	Approx. Weight (Lbs.)	IND #
77201 (77-201)	1/8"	0.01	W 01003
77202 (77-202)	1/4"	0.01	W 01009
77203 (77-203)	3/8"	0.02	W 01017
77204 (77-204)	1/2"	0.03	W 01022
77205 (77-205)	5/8"	0.04	W 01028
77206 (77-206)	3/4"	0.06	W 01034
77207 (77-207)	1"	0.10	W 01047
77208 (77-208)	1-1/4"	0.15	W 01055
77209 (77-209)	1-1/2"	0.22	W 01063
77210 (77-210)	2"	0.39	W 01072

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
