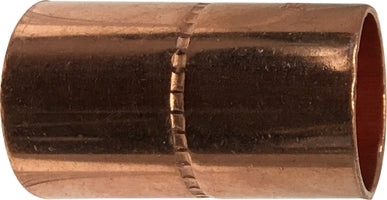

77203 (77-203) by Midland | Copper Fitting | Coupling (Socket) with Rolled Up Tube Stop | C x C | 3/8" ID | Straight

77203 (77-203) by Midland | Copper Fitting | Coupling (Socket) with Rolled Up Tube Stop | C x C | 3/8" ID | Straight

Save $0.31 Save $0.31
$2.01
$2.01 - $2.01
$2.01
$1.70
$1.70 - $1.70
$1.70

Midland Industries
Copper Fitting - Wrot Solder Joint - Coupling (Socket) with Rolled Up Tube Stop - C x C
Specifications for Variant SKU: 77203 Midland
Shape (Orientation): Straight
Material(s): Copper
Applicable Specs & Approvals: NSF 61, ASTM B 88, ASTM B 306, ASTM A 306
Features:
  • Temp range 32° to 200°F
  • Pressure @100°F:
    • 1/8-1 : 500 PSI
    • 1-1/4-2 : 400 PSI
    • 2-1/2 - 3: 300 PSI
Specifications:
  • NSF - 61 Certified
  • Alloy C12200
Symbol Of Joint Ends:
  • C = Solder joint fitting end made to receive copper tube diameter
  • Ftg. = Solder joint fitting end made to copper tube diameter
  • F = Internal ANSI Standard Taper Pipe Thread-Female
  • M = External ANSI Standard Taper Pipe Thread-Male
  • Threaded ends ANSI/ ASME B1. Solder ends ASTM B88

The Above Conforms To ASTM B 88 & ASTM B 306, A 306.

Crossover Series:
WC-400 100
Nominal Size Joint Ends Metal Thickness
T
(in)		 Inside Diameter
O
(in)
Male End Female End
Outside Diameter
A
(in)		 Average Tolerance
(mm)		 Actual MIN
(in)		 O.D. MAX
(in)		   Inside Diameter
F
(in)		 Average Tolerance
(mm)		 Actual MIN
(in)		 O.D. MAX
(in)
1/8" 2/8" 0.03mm 2/8" 2/8" 3/8" 2/8" 0.03mm 2/8" 2/8" 3/8" 0 2/8"
1/4" 3/8" 0.03mm 3/8" 3/8" 3/8" 3/8" 0.03mm 3/8" 3/8" 3/8" 0 2/8"
3/8" 4/8" 0.03mm 4/8" 4/8" 3/8" 4/8" 0.03mm 4/8" 4/8" 3/8" 0 3/8"
1/2" 5/8" 0.03mm 5/8" 5/8" 4/8" 5/8" 0.03mm 5/8" 5/8" 3/8" 0 4/8"
5/8" 6/8" 0.03mm 6/8" 6/8" 5/8" 6/8" 0.03mm 6/8" 6/8" 5/8" 0 4/8"
3/4" 7/8" 0.03mm 7/8" 7/8" 6/8" 7/8" 0.03mm 7/8" 7/8" 5/8" 0 5/8"
Part Number Nominal (ID) Approx. Weight
(Lbs.)		 IND #
77201
(77-201)		 1/8" 0.01 W 01003
77202
(77-202)		 1/4" 0.01 W 01009
77203
(77-203)		 3/8" 0.02 W 01017
77204
(77-204)		 1/2" 0.03 W 01022
77205
(77-205)		 5/8" 0.04 W 01028
77206
(77-206)		 3/4" 0.06 W 01034
77207
(77-207)		 1" 0.10 W 01047
77208
(77-208)		 1-1/4" 0.15 W 01055
77209
(77-209)		 1-1/2" 0.22 W 01063
77210
(77-210)		 2" 0.39 W 01072
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
