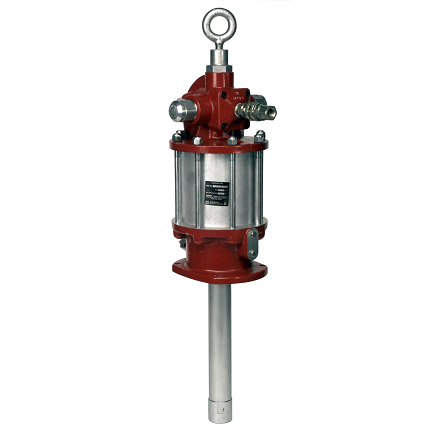

7793-C by Alemite | Oil Pump | Pneumatic - Industrial | Drum Size: Stub | Material Inlet: 1-1/2" Female NPTF | Material Outlet: 1/2" Female NPTF

Save $53.35

$5,001.40

$5,001.40 - $5,001.40

$5,001.40

$4,948.05

$4,948.05 - $4,948.05

$4,948.05

PRODUCT DESCRIPTION

Alemite Oil Pumps - Pneumatic - Industrial

Quantity

Specifications for Variant SKU: 7793-C Alemite

Applications:
Alemite Oil Pumps are ideal for applications where fluids are piped to multiple outlets. Combined with Alemite Hose Reels, Dispensing Valves and Meters, Alemite Oil Pumps deliver motor oils, gear oils, cutting oils, hydraulic oils, machine coolants, automatic transmission fluids and a wide range of petroleum based fluids from tanks, drums, totes and pails. Alemite Oil Pumps can be used for bulk transfer or direct delivery from the original container.
Features:
4-1/4" - 6" diameter air motor. Recommended for pumping distances over 100 feet Includes Air Connector and Quick Detach Air Coupler Requires Bung Adapter, Cover and Muffler (not included, refer to table below) Requires appropriate downtube 3/4" air inlet and outlet

Part Number	Drum Size	Material Inlet	Material Outlet	Pump Ratio	Delivery	Cover	Bung Adapter	MufflerWeight
7783-A4	55 gallon	NA	1/2" NPTF(f)	6:1	10 gpm	323847-4	326750-B1	324170	55 Lb.
7783-C4	Stub	1 1/2" NPTF(f)	1/2" NPTF(f)	6:1	10 gpm	Varies with drum size	326750-B1	324170	45 Lb.
7793-A1	55 gallon	NA	1/2" NPTF(f)	12:1	6.5 gpm	323847-4	326750-B1	324170	75 Lb.
7793-C	Stub	1-1/2" NPTF(f)	1/2" NPTF(f)	12:1	6.5 gpm	Varies with drum size	326750-B1	324170	65 Lb.
