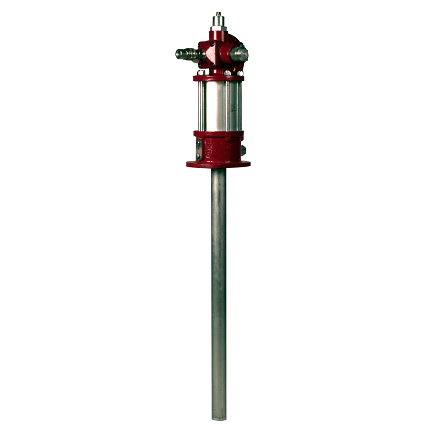

7783-A4 by Alemite | Oil Pump | Pneumatic - Industrial | Drum Size: 55 Gallon | Material Outlet: 1/2" Female NPTF

7783-A4 by Alemite | Oil Pump | Pneumatic - Industrial | Drum Size: 55 Gallon | Material Outlet: 1/2" Female NPTF

Save $1,591.72 Save $1,591.72
$5,571.02
$5,571.02 - $5,571.02
$5,571.02
$3,979.30
$3,979.30 - $3,979.30
$3,979.30

PRODUCT DESCRIPTION

Alemite Oil Pumps - Pneumatic - Industrial
Specifications for Variant SKU: 7783-A4 Alemite
Applications:
  • Alemite Oil Pumps are ideal for applications where fluids are piped to multiple outlets. Combined with Alemite Hose Reels, Dispensing Valves and Meters, Alemite Oil Pumps deliver motor oils, gear oils, cutting oils, hydraulic oils, machine coolants, automatic transmission fluids and a wide range of petroleum based fluids from tanks, drums, totes and pails.
  • Alemite Oil Pumps can be used for bulk transfer or direct delivery from the original container.
Features:
  • 4-1/4" - 6" diameter air motor.
  • Recommended for pumping distances over 100 feet
  • Includes Air Connector and Quick Detach Air Coupler
  • Requires Bung Adapter, Cover and Muffler (not included, refer to table below)
  • Requires appropriate downtube
  • 3/4" air inlet and outlet

Part Number Drum Size Material Inlet Material Outlet Pump Ratio Delivery Cover Bung Adapter MufflerWeight
7783-A4 55 gallon NA 1/2" NPTF(f) 6:1 10 gpm 323847-4 326750-B1 324170 55 Lb.
7783-C4 Stub 1 1/2" NPTF(f) 1/2" NPTF(f) 6:1 10 gpm Varies with drum size 326750-B1 324170 45 Lb.
7793-A1 55 gallon NA 1/2" NPTF(f) 12:1 6.5 gpm 323847-4 326750-B1 324170 75 Lb.
7793-C Stub 1-1/2" NPTF(f) 1/2" NPTF(f) 12:1 6.5 gpm Varies with drum size 326750-B1 324170 65 Lb.
