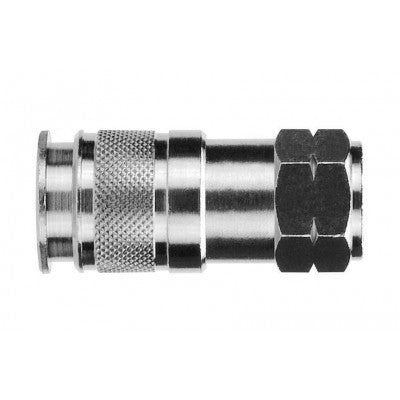

80192-06 AIGNEP | QC Series | 1/4" Multisocket Coupler x 3/8" Female NPTF

80192-06 by AIGNEP | QC Series | 1/4" Multisocket Coupler x 3/8" Female NPTF

Name: 80192-06 by AIGNEP | QC Series | 1/4" Multisocket Coupler x 3/8" Female NPTF
Brand: AIGNEP
SKU: 80192-06 AIGNEP
Price: 6.23 USD
Availability: InStock

Save $0.07

$6.30

$6.30 - $6.30

$6.30

$6.23

$6.23 - $6.23

$6.23

Quantity

Specifications for Variant SKU: 80192-06 AIGNEP
Series:	QC Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female Multi-Socket QD Interchange, 3/8in Female NPTF
Material(s):	Nickel-Plated Brass

Multisocket Coupler - 1/4" Female NPTF

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

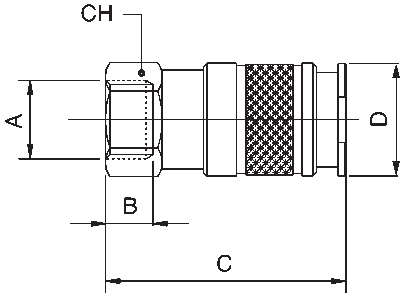

Seal	Thread Type	A	B (IN)	B	CH	C	D
80192-04	NBR 70	NPTF	1/4"	0.533"	13.5 mm	21 mm	54 mm	24 mm
80192-06	NBR 70	NPTF	3/8"	0.533"	13.5 mm	21 mm	54 mm	24 mm
80192-08	NBR 70	NPTF	1/2"	0.689"	17.5 mm	24 mm	59 mm	24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
