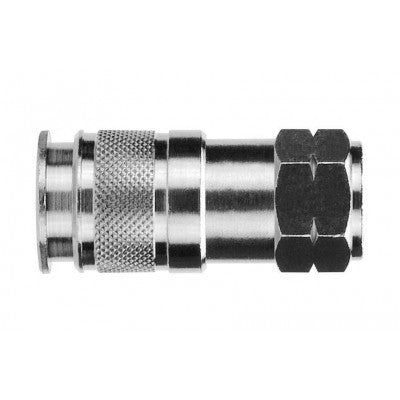

80192-08 AIGNEP | QC Series | 1/4" Multisocket Coupler x 1/2" Female NPTF
80192-08 by AIGNEP | QC Series | 1/4" Multisocket Coupler x 1/2" Female NPTF
80192-08 AIGNEP | QC Series | 1/4" Multisocket Coupler x 1/2" Female NPTF

80192-08 by AIGNEP | QC Series | 1/4" Multisocket Coupler x 1/2" Female NPTF

Save $0.07 Save $0.07
$6.83
$6.83 - $6.83
$6.83
$6.76
$6.76 - $6.76
$6.76
Specifications for Variant SKU: 80192-08 AIGNEP
Series: QC Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female Multi-Socket QD Interchange, 1/2in Female NPTF
Material(s): Nickel-Plated Brass

Multisocket Coupler - 1/4" Female NPTF

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

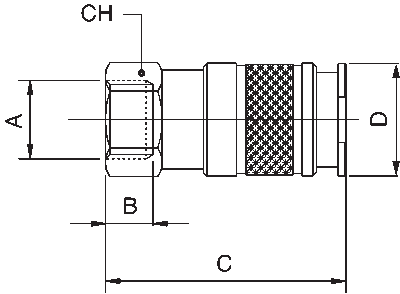

Product Number Seal Thread Type A B (IN) B CH C D
80192-04 NBR 70 NPTF 1/4" 0.533" 13.5 mm 21 mm 54 mm 24 mm
80192-06 NBR 70 NPTF 3/8" 0.533" 13.5 mm 21 mm 54 mm 24 mm
80192-08 NBR 70 NPTF 1/2" 0.689" 17.5 mm 24 mm 59 mm 24 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
