82320-04 AIGNEP | Port Plug | 1/4" Male Swift-Fit Universal | Pack of 10

82320-04 by AIGNEP | Port Plug | 1/4" Male Swift-Fit Universal | Pack of 10

Save $0.16

$14.97

$14.97 - $14.97

$14.97

$14.81

$14.81 - $14.81

$14.81

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 82320-04 AIGNEP \| 10 \|
Series:	Port Plug Series
Ends Configuration:	1/4in Male Swift-Fit
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Male Plug

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

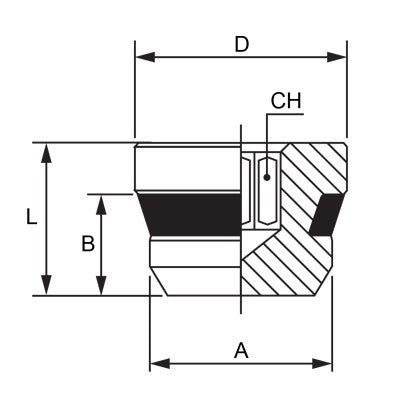

Product Number	A	B	D	L	CH
82320-02	1/8"	5.5 mm	10 mm	8 mm	5 mm
82320-04	1/4"	7 mm	14 mm	10 mm	6 mm
82320-06	3/8"	7.5 mm	16.8 mm	11 mm	7 mm
82320-08	1/2"	9 mm	20 mm	13 mm	11 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
