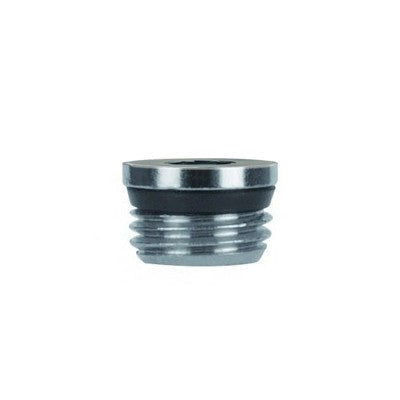

82320-08 AIGNEP | Port Plug | 1/2" Male Swift-Fit Universal | Pack of 10
82320-08 by AIGNEP | Port Plug | 1/2" Male Swift-Fit Universal | Pack of 10
82320-08 AIGNEP | Port Plug | 1/2" Male Swift-Fit Universal | Pack of 10

82320-08 by AIGNEP | Port Plug | 1/2" Male Swift-Fit Universal | Pack of 10

Save $0.19 Save $0.19
$18.67
$18.67 - $18.67
$18.67
$18.48
$18.48 - $18.48
$18.48

Package Quantity: 10 ea

Specifications for Variant SKU: 82320-08 AIGNEP | 10 |
Series: Port Plug Series
Ends Configuration: 1/2in Male Swift-Fit
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Male Plug

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

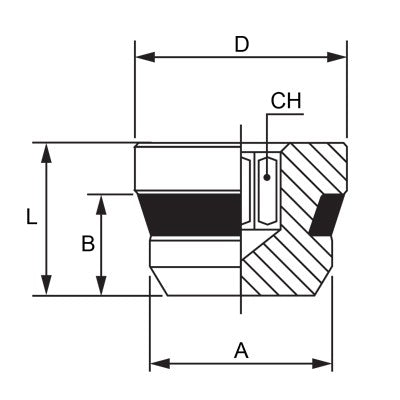

Product Number A B D L CH
82320-02 1/8" 5.5 mm 10 mm 8 mm 5 mm
82320-04 1/4" 7 mm 14 mm 10 mm 6 mm
82320-06 3/8" 7.5 mm 16.8 mm 11 mm 7 mm
82320-08 1/2" 9 mm 20 mm 13 mm 11 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
