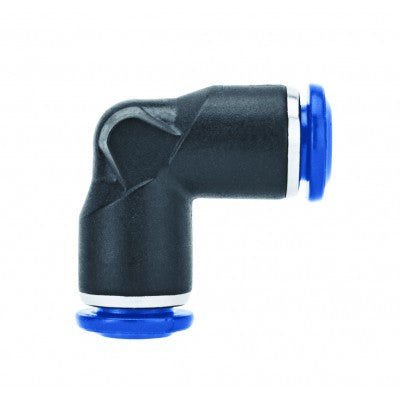

85130-05 AIGNEP | 85 Series | Union 90° Elbow Composite | 5/16" Tube | Pack of 10

85130-05 by AIGNEP | 85 Series | Union Composite | 5/16" Tube | 90° Elbow | Pack of 10

Save $0.15

$14.08

$14.08 - $14.08

$14.08

$13.93

$13.93 - $13.93

$13.93

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 85130-05 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Push-to-Connect, 5/16in Push-to-Connect, Some Ends Match
Material(s):	Nylon

Union Elbow Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon

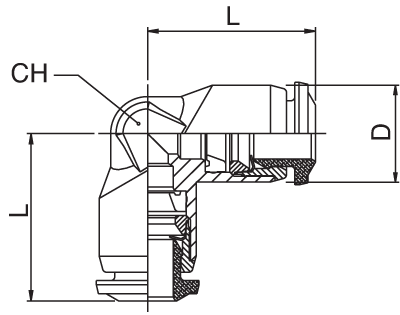

Product Number	Tube	L	CH	D
85130-02	1/8"	15.5 mm	9 mm	10 mm
85130-53	5/32"	16.5 mm	9 mm	10 mm
85130-04	1/4"	20.5 mm	11 mm	12.5 mm
85130-05	5/16"	22 mm	13 mm	14 mm
85130-06	3/8"	26.5 mm	16 mm	17 mm
85130-08	1/2"	30.5 mm	19 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
