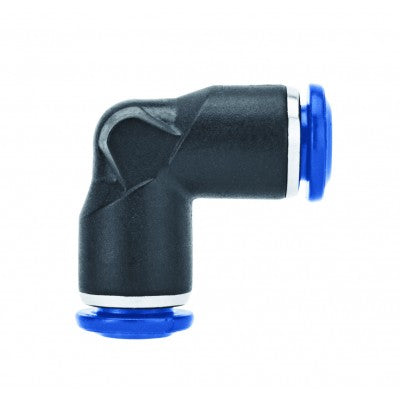

85130-02 AIGNEP | 85 Series | Union 90° Elbow Composite | 1/8" Tube | Pack of 10
85130-02 by AIGNEP | 85 Series | Union Composite | 1/8" Tube | 90° Elbow | Pack of 10
85130-02 AIGNEP | 85 Series | Union 90° Elbow Composite | 1/8" Tube | Pack of 10

85130-02 by AIGNEP | 85 Series | Union Composite | 1/8" Tube | 90° Elbow | Pack of 10

Save $8.61 Save $8.61
$21.52
$21.52 - $21.52
$21.52
$12.91
$12.91 - $12.91
$12.91

Package Quantity: 10 ea

Specifications for Variant SKU: 85130-02 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Push-to-Connect, 1/8in Push-to-Connect, Some Ends Match
Material(s): Nylon

Union Elbow Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon

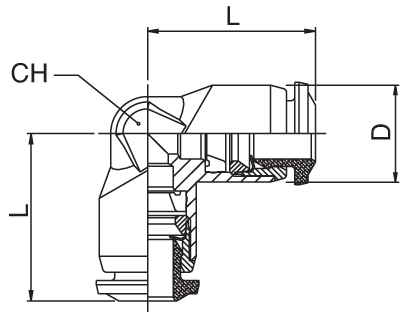

Product Number Tube L CH D
85130-02 1/8" 15.5 mm 9 mm 10 mm
85130-53 5/32" 16.5 mm 9 mm 10 mm
85130-04 1/4" 20.5 mm 11 mm 12.5 mm
85130-05 5/16" 22 mm 13 mm 14 mm
85130-06 3/8" 26.5 mm 16 mm 17 mm
85130-08 1/2" 30.5 mm 19 mm 20 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
