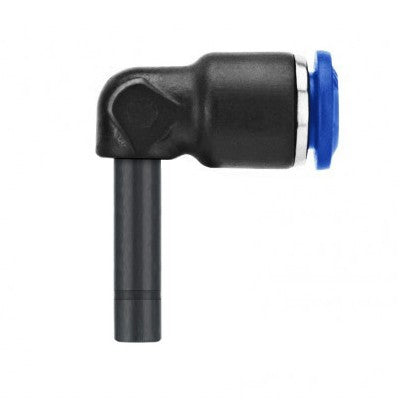

85150-05 AIGNEP | 85 Series | Plug-In 90° Elbow | 5/16" Tube x 5/16" Stud Long | Pack of 10

85150-05 by AIGNEP | 85 Series | Plug-In | 5/16" Tube x 5/16" Stud Long | 90° Elbow | Pack of 10

Save $0.09

$9.33

$9.33 - $9.33

$9.33

$9.24

$9.24 - $9.24

$9.24

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 85150-05 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Push-to-Connect, 5/16in Push-to-Connect, Some Ends Match
Material(s):	Nylon

Elbow Plug In Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon

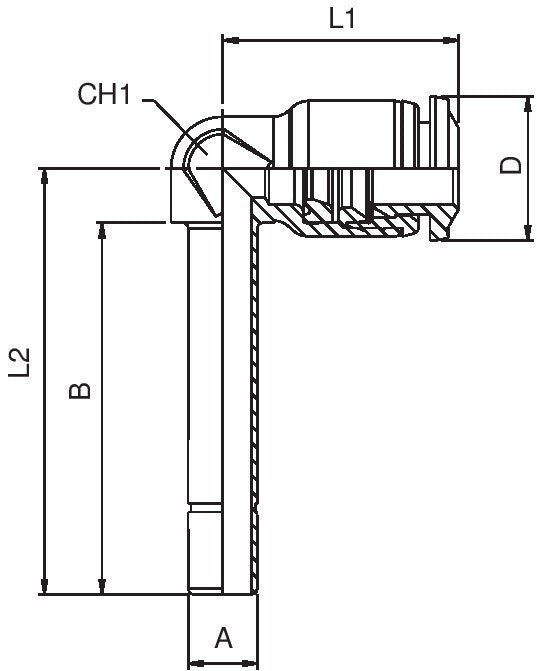

Product Number	Tube	A	B (IN)	B	L1	L2	CH1	D
85150-53	5/32"	5/32"	1.102"	28 mm	16.5 mm	31.8 mm	7 mm	10 mm
85150-04	1/4"	1/4"	1.272"	32.3 mm	20.5 mm	37 mm	9 mm	12.5 mm
85150-05	5/16"	5/16"	1.417"	36 mm	22 mm	42 mm	10 mm	14 mm
85150-06	3/8"	3/8"	1.606"	40.8 mm	26.5 mm	48.3 mm	13 mm	17 mm
85150-08	1/2"	1/2"	1.850"	47 mm	31 mm	55 mm	16 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
