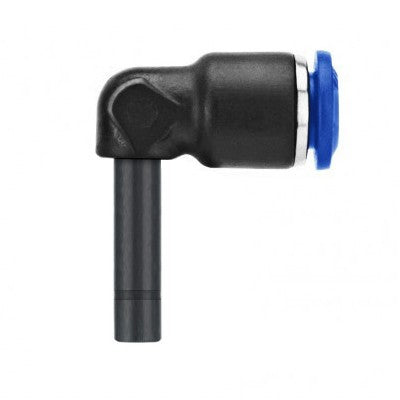

85150-04 AIGNEP | 85 Series | Plug-In 90° Elbow | 1/4" Tube x 1/4" Stud Long | Pack of 10
85150-04 by AIGNEP | 85 Series | Plug-In | 1/4" Tube x 1/4" Stud Long | 90° Elbow | Pack of 10
85150-04 AIGNEP | 85 Series | Plug-In 90° Elbow | 1/4" Tube x 1/4" Stud Long | Pack of 10

85150-04 by AIGNEP | 85 Series | Plug-In | 1/4" Tube x 1/4" Stud Long | 90° Elbow | Pack of 10

Save $5.38 Save $5.38
$13.45
$13.45 - $13.45
$13.45
$8.07
$8.07 - $8.07
$8.07

Package Quantity: 10 ea

Specifications for Variant SKU: 85150-04 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s): Nylon

Elbow Plug In Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon

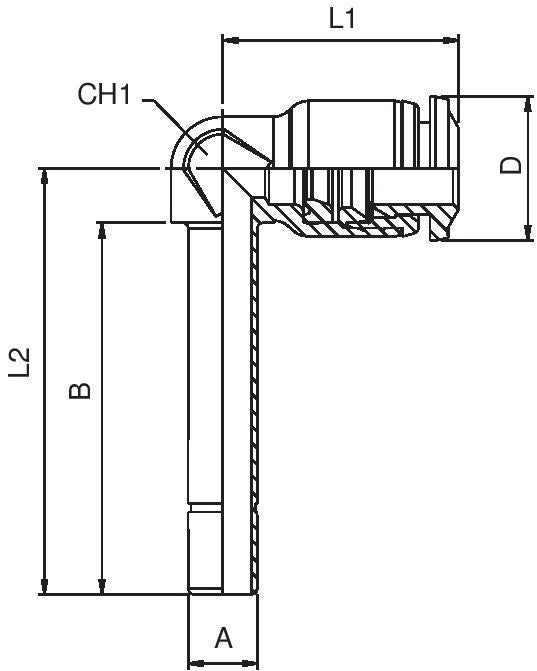

Product Number Tube A B (IN) B L1 L2 CH1 D
85150-53 5/32" 5/32" 1.102" 28 mm 16.5 mm 31.8 mm 7 mm 10 mm
85150-04 1/4" 1/4" 1.272" 32.3 mm 20.5 mm 37 mm 9 mm 12.5 mm
85150-05 5/16" 5/16" 1.417" 36 mm 22 mm 42 mm 10 mm 14 mm
85150-06 3/8" 3/8" 1.606" 40.8 mm 26.5 mm 48.3 mm 13 mm 17 mm
85150-08 1/2" 1/2" 1.850" 47 mm 31 mm 55 mm 16 mm 20 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
