856-2 by Dixon Valve | Small Hose Crimper Die | for 855 Series Crimpers | 0.578" Die Bore | For Hose OD: from 0.590" to 0.625"

856-2 by Dixon Valve | Small Hose Crimper Die | for 855 Series Crimpers | 0.578" Die Bore | For Hose OD: from 0.590" to 0.625"

Save $3.13 Save $3.13
$28.13
$28.13 - $28.13
$28.13
$25.00
$25.00 - $25.00
$25.00

Dixon Valve

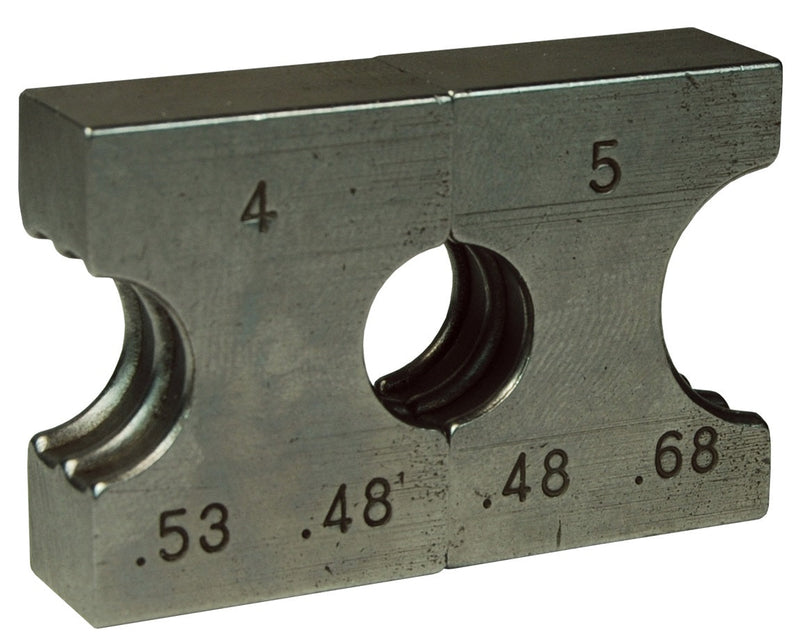

Small Hose Crimper Die

Replacement Die for 855 and 855A Small Hose Crimpers.
Specifications for Variant SKU: 856-2 Dixon
Series: 856 Series
Features:
  • Rugged, portable and easy to use.
Part Number Previous
Part Number		 Includes:
855A - Crimper with (5) dies for 28/64" (0.437") to 43/64" (0.671") O.D. hose (See Table Below)
Small Hose Crimper Dies
Previous
Part Number		 Part Number Die Bore Hose O.D. Included with Crimper 855 Included with Crimper 855A
from to
200FC3 856-10 0.375" 0.385" 0.406" No - Optional No - Optional
- 856-7 0.437" 0.447" 0.468" No - Optional Yes - Standard
200FC4A 856-4 0.484" 0.490" 0.520" Yes - Standard Yes - Standard
200FC4B 856-3 0.531" 0.540" 0.562" Yes - Standard Yes - Standard
200FC5 856-2 0.578" 0.590" 0.625" Yes - Standard Yes - Standard
200FC6A 856-1 0.625" 0.640" 0.671" Yes - Standard Yes - Standard
200FC6B 856-5 0.687" 0.690" 0.710" Yes - Standard No - Optional
200FC8A 856-8 0.750" 0.760" 0.781" No - Optional No - Optional
200FC8B 856-9 0.812" 0.820" 0.843" No - Optional No - Optional
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
