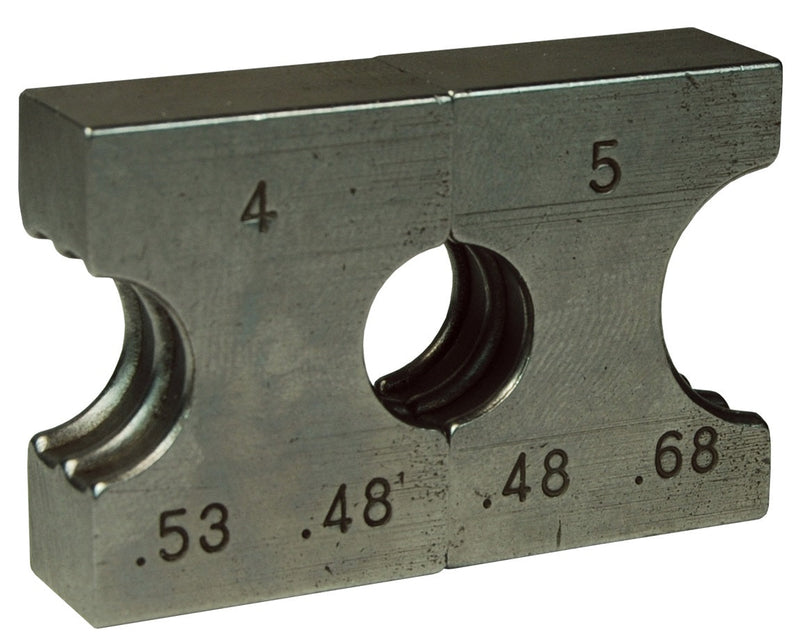

856-4 by Dixon Valve | Small Hose Crimper Die | for 855 Series Crimpers | 0.484" Die Bore | For Hose OD: from 0.490" to 0.520"

856-4 by Dixon Valve | Small Hose Crimper Die | for 855 Series Crimpers | 0.484" Die Bore | For Hose OD: from 0.490" to 0.520"

Save $2.71 Save $2.71
$24.37
$24.37 - $24.37
$24.37
$21.66
$21.66 - $21.66
$21.66

Dixon Valve
Small Hose Crimper Die

Replacement Die for 855 and 855A Small Hose Crimpers.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 856-4 Dixon
Series: 856 Series
Features:
  • Rugged, portable and easy to use.
Part Number Previous
Part Number		 Includes:
855A - Crimper with (5) dies for 28/64" (0.437") to 43/64" (0.671") O.D. hose (See Table Below)
Small Hose Crimper Dies
Previous
Part Number		 Part Number Die Bore Hose O.D. Included with Crimper 855 Included with Crimper 855A
from to
200FC3 856-10 0.375" 0.385" 0.406" No - Optional No - Optional
- 856-7 0.437" 0.447" 0.468" No - Optional Yes - Standard
200FC4A 856-4 0.484" 0.490" 0.520" Yes - Standard Yes - Standard
200FC4B 856-3 0.531" 0.540" 0.562" Yes - Standard Yes - Standard
200FC5 856-2 0.578" 0.590" 0.625" Yes - Standard Yes - Standard
200FC6A 856-1 0.625" 0.640" 0.671" Yes - Standard Yes - Standard
200FC6B 856-5 0.687" 0.690" 0.710" Yes - Standard No - Optional
200FC8A 856-8 0.750" 0.760" 0.781" No - Optional No - Optional
200FC8B 856-9 0.812" 0.820" 0.843" No - Optional No - Optional
