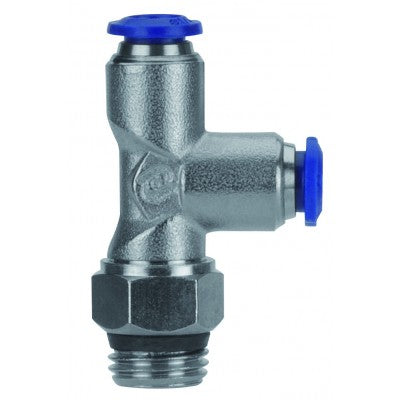

87222-53-04 AIGNEP | 87 / 88 Series | Swivel Male Run Tee | 5/32" Tube x 1/4" Swift-Fit Male | Pack of 10

87222-53-04 by AIGNEP | 87 / 88 Series | Swivel Male Run | 5/32" Tube x 1/4" Swift-Fit Male | Tee | Pack of 10

Save $20.24

$50.60

$50.60 - $50.60

$50.60

$30.36

$30.36 - $30.36

$30.36

Package Quantity: 10 EA

Specifications for Variant SKU: 87222-53-04 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Tee
Ends Configuration:	5/32in Push-to-Connect, 1/4in Male Swift-Fit
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Run Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Tube	A	B (IN)	B	L1	L2
87222-02-02	1/8"	1/8"	0.295"	7.5 mm	17 mm	20.5 mm
87222-02-04	1/8"	1/4"	0.511"	13 mm	17 mm	24 mm
87222-53-02	5/32"	1/8"	0.295"	7.5 mm	17 mm	20 mm
87222-53-04	5/32"	1/4"	0.511"	13 mm	17 mm	24 mm
87222-04-02	1/4"	1/8"	0.295"	7.5 mm	21 mm	22 mm
87222-04-04	1/4"	1/4"	0.511"	13 mm	21 mm	25 mm
87222-04-06	1/4"	3/8"	0.511"	13 mm	21 mm	28 mm
87222-06-04	3/8"	1/4"	0.511"	13 mm	26.5 mm	28 mm
87222-06-06	3/8"	3/8"	0.511"	13 mm	26.5 mm	30 mm
87222-06-08	3/8"	1/2"	0.669"	17 mm	26.5 mm	33 mm
87222-08-04	1/2"	1/4"	0.511"	13 mm	30.5 mm	31.5 mm
87222-08-06	1/2"	3/8"	0.511"	13 mm	30.5 mm	33 mm
87222-08-08	1/2"	1/2"	0.669"	17 mm	30.5 mm	36 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
