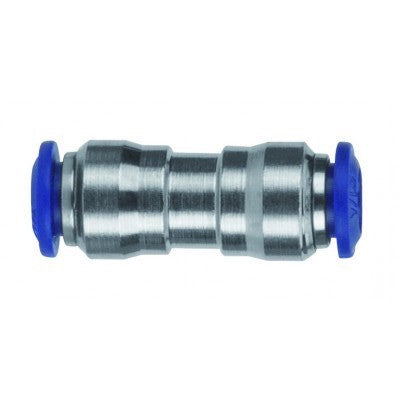

88040-05 AIGNEP | 87 / 88 Series | Union | 5/16" Tube | Pack of 10

88040-05 by AIGNEP | 87 / 88 Series | Union | 5/16" Tube | Pack of 10

Save $0.24

$23.41

$23.41 - $23.41

$23.41

$23.17

$23.17 - $23.17

$23.17

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 88040-05 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Straight
Ends Configuration:	5/16in Push-to-Connect, 5/16in Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Union

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

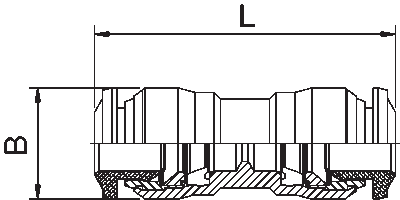

Tube	B (IN)	B	L
88040-02	1/8"	0.335"	8.5 mm	26 mm
88040-04	1/4"	0.492"	12.5 mm	35 mm
88040-53	5/32"	0.413"	10.5 mm	30 mm
88040-05	5/16"	0.571"	14.5 mm	37 mm
88040-08	1/2"	0.807"	20.5 mm	48.5 mm
88040-06	3/8"	0.689"	17.5 mm	43 mm
88040-04-53	1/4" x 5/32"	0.492"	12.5 mm	32.5 mm
88040-06-04	3/8" x 1/4"	0.688"	17.5 mm	39.5 mm
88040-06-08	3/8" x 1/2"	0.807"	20.5 mm	47 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
