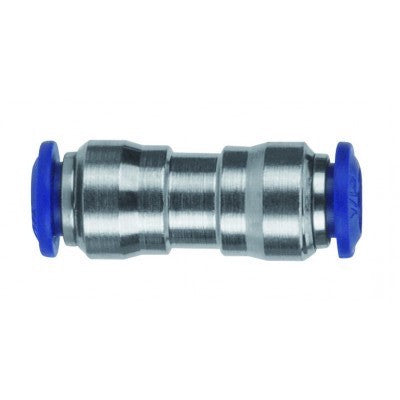

88040-04 AIGNEP | 87 / 88 Series | Union | 1/4" Tube | Pack of 10
88040-04 by AIGNEP | 87 / 88 Series | Union | 1/4" Tube | Pack of 10
88040-04 AIGNEP | 87 / 88 Series | Union | 1/4" Tube | Pack of 10

88040-04 by AIGNEP | 87 / 88 Series | Union | 1/4" Tube | Pack of 10

Save $18.07 Save $18.07
$45.40
$45.40 - $45.40
$45.40
$27.33
$27.33 - $27.33
$27.33

Package Quantity: 10 ea

Specifications for Variant SKU: 88040-04 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Union

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

Product Number Tube B (IN) B L
88040-02 1/8" 0.335" 8.5 mm 26 mm
88040-04 1/4" 0.492" 12.5 mm 35 mm
88040-53 5/32" 0.413" 10.5 mm 30 mm
88040-05 5/16" 0.571" 14.5 mm 37 mm
88040-08 1/2" 0.807" 20.5 mm 48.5 mm
88040-06 3/8" 0.689" 17.5 mm 43 mm
88040-04-53 1/4" x 5/32" 0.492" 12.5 mm 32.5 mm
88040-06-04 3/8" x 1/4" 0.688" 17.5 mm 39.5 mm
88040-06-08 3/8" x 1/2" 0.807" 20.5 mm 47 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
