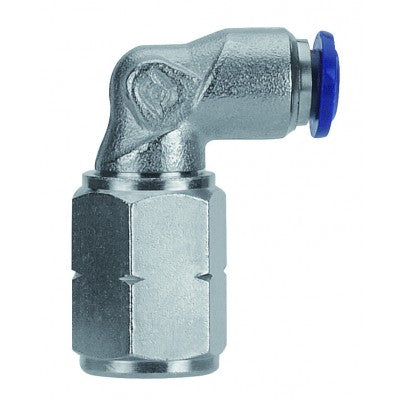

88105-06-02 AIGNEP | 87 / 88 Series | Swivel Female 90° Elbow | 3/8" Tube x 1/8" Female NPTF | Pack of 10

88105-06-02 by AIGNEP | 87 / 88 Series | Swivel | 3/8" Tube x 1/8" Female NPTF | 90° Elbow | Pack of 10

Save $26.40

$66.00

$66.00 - $66.00

$66.00

$39.60

$39.60 - $39.60

$39.60

Package Quantity: 10 ea

Specifications for Variant SKU: 88105-06-02 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Push-to-Connect, 1/8in Female NPTF
Material(s):	Nickel Plated Brass
Seal Material(s):	NBR 70

Female Swivel Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: NPTF

Tube	A NPTF	Thread Type	B (IN)	B	L1	L2	CH1	CH2
88105-53-02	5/32"	1/8"	NPTF	0.374"	9.5 mm	17 mm	25 mm	9 mm	13 mm
88105-53-04	5/32"	1/4"	NPTF	0.531"	13.5 mm	17 mm	31.5 mm	9 mm	16 mm
88105-04-02	1/4"	1/8"	NPTF	0.374"	9.5 mm	21.5 mm	27 mm	11 mm	13 mm
88105-04-04	1/4"	1/4"	NPTF	0.531"	13.5 mm	21 mm	32.5 mm	11 mm	16 mm
88105-06-02	3/8"	1/8"	NPTF	0.374"	9.5 mm	27 mm	31 mm	13 mm	13 mm
88105-06-04	3/8"	1/4"	NPTF	0.531"	13.5 mm	27 mm	35.5 mm	16 mm	16 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
