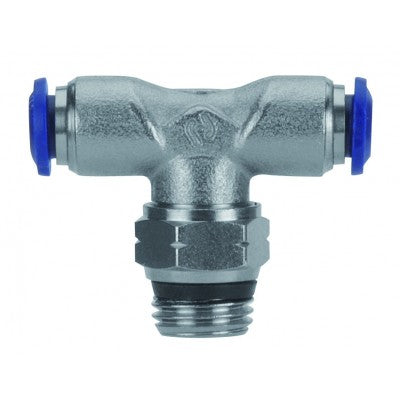

88215-04-32 AIGNEP | 87 / 88 Series | Swivel Male Branch Tee | 1/4" Tube x 10/32 UNF Male | Pack of 10

88215-04-32 by AIGNEP | 87 / 88 Series | Swivel Male Branch | 1/4" Tube x 10/32 UNF Male | Tee | Pack of 10

Save $0.32

$30.97

$30.97 - $30.97

$30.97

$30.65

$30.65 - $30.65

$30.65

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 88215-04-32 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Tee
Ends Configuration:	1/4in Push-to-Connect, 10-32 Male UNF, 1/4in Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Branch Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

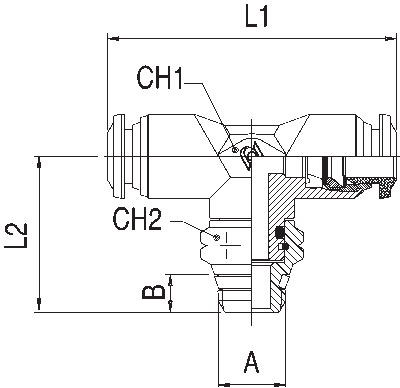

Product Number	Tube	A	B (IN)	B	L1	L2
88215-02-32	1/8"	10-32	0.197"	5 mm	33 mm	20 mm
88215-53-32	5/32"	10-32	0.197"	5 mm	33 mm	20 mm
88215-04-32	1/4"	10-32	0.197"	5 mm	33 mm	22 mm

m

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
