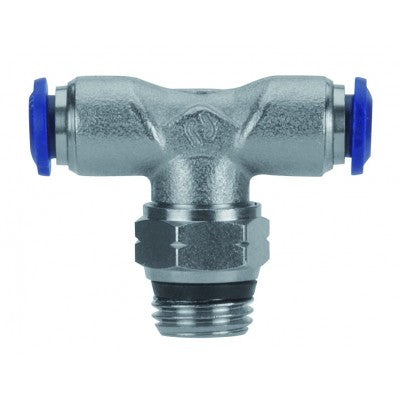

88215-53-32 AIGNEP | 87 / 88 Series | Swivel Male Branch Tee | 5/32" Tube x 10/32 UNF Male | Pack of 10
88215-53-32 by AIGNEP | 87 / 88 Series | Swivel Male Branch | 5/32" Tube x 10/32 UNF Male | Tee | Pack of 10
88215-53-32 AIGNEP | 87 / 88 Series | Swivel Male Branch Tee | 5/32" Tube x 10/32 UNF Male | Pack of 10

88215-53-32 by AIGNEP | 87 / 88 Series | Swivel Male Branch | 5/32" Tube x 10/32 UNF Male | Tee | Pack of 10

Save $0.28 Save $0.28
$29.03
$29.03 - $29.03
$29.03
$28.75
$28.75 - $28.75
$28.75

Package Quantity: 10 ea

Specifications for Variant SKU: 88215-53-32 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): Tee
Ends Configuration: 5/32in Push-to-Connect, 10-32 Male UNF, 5/32in Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Swivel Branch Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

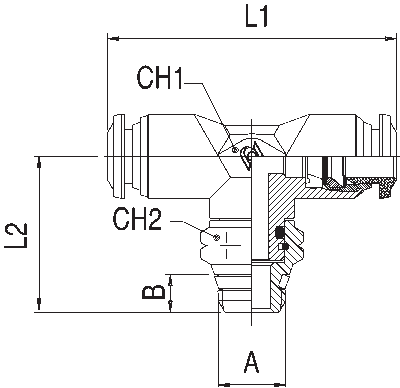

Product Number Tube A B (IN) B L1 L2
88215-02-32 1/8" 10-32 0.197" 5 mm 33 mm 20 mm
88215-53-32 5/32" 10-32 0.197" 5 mm 33 mm 20 mm
88215-04-32 1/4" 10-32 0.197" 5 mm 33 mm 22 mm
m
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
