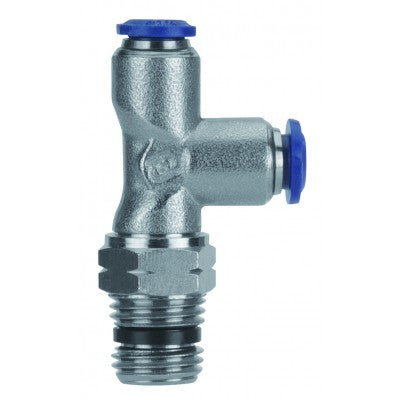

88222-02-02 AIGNEP | 87 / 88 Series | Swivel Male Run Tee | 1/8" Tube x 1/8" Male NPTF | Pack of 10

88222-02-02 by AIGNEP | 87 / 88 Series | Swivel Male Run | 1/8" Tube x 1/8" Male NPTF | Tee | Pack of 10

Save $18.87

$47.18

$47.18 - $47.18

$47.18

$28.31

$28.31 - $28.31

$28.31

Package Quantity: 10 ea

Specifications for Variant SKU: 88222-02-02 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Tee
Ends Configuration:	1/8in Push-to-Connect, 1/8in Male NPTF, 1/8in Push-to-Connect, Some Ends Match
Material(s):	Nickel Plated Brass
Seal Material(s):	NBR 70

Swivel Run Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: NPTF

Tube	A NPTF	Thread Type	B (IN)	B	L1	L2
88222-02-02	1/8"	1/8"	NPTF	0.295"	7.5 mm	17 mm	23 mm
88222-02-04	1/8"	1/4"	NPTF	0.511"	13 mm	17 mm	30 mm
88222-53-02	5/32"	1/8"	NPTF	0.295"	7.5 mm	17 mm	23 mm
88222-04-02	1/4"	1/8"	NPTF	0.295"	7.5 mm	21 mm	25 mm
88222-04-04	1/4"	1/4"	NPTF	0.511"	13 mm	21 mm	31 mm
88222-06-04	3/8"	1/4"	NPTF	0.511"	13 mm	26.5 mm	34 mm
88222-06-06	3/8"	3/8"	NPTF	0.511"	13 mm	26.5 mm	34.5 mm
88222-06-08	3/8"	1/2"	NPTF	0.669"	17 mm	26.5 mm	41 mm
88222-08-04	1/2"	1/4"	NPTF	0.512"	13 mm	30.5 mm	37.5 mm
88222-08-06	1/2"	3/8"	NPTF	0.511"	13 mm	30.5 mm	37.5 mm
88222-08-08	1/2"	1/2"	NPTF	0.669"	17 mm	30.5 mm	44 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
