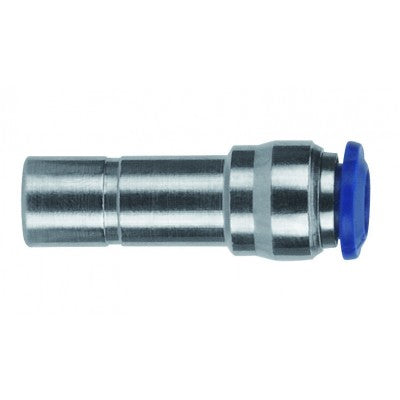

88700-08-04 AIGNEP | 87 / 88 Series | Tube Reducer | 1/2" Male Stud x 1/4" Tube | Pack of 10
88700-08-04 by AIGNEP | 87 / 88 Series | Tube Reducer | 1/2" Male Stud x 1/4" Tube | Pack of 10
88700-08-04 AIGNEP | 87 / 88 Series | Tube Reducer | 1/2" Male Stud x 1/4" Tube | Pack of 10

88700-08-04 by AIGNEP | 87 / 88 Series | Tube Reducer | 1/2" Male Stud x 1/4" Tube | Pack of 10

Save $0.22 Save $0.22
$21.78
$21.78 - $21.78
$21.78
$21.56
$21.56 - $21.56
$21.56

Package Quantity: 10 ea

Specifications for Variant SKU: 88700-08-04 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Stub, 1/4in Push-to-Connect
Material(s): Nickel Plated Brass
Seal Material(s): NBR 70

Tube Reducer

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

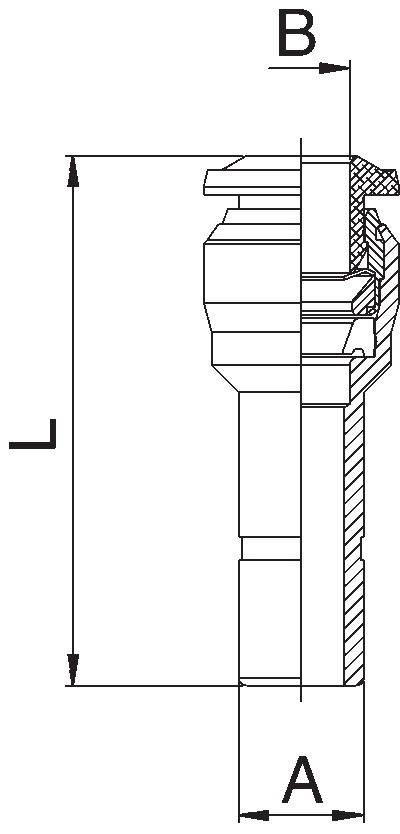

Product Number A B (IN) L
88700-04-02 1/4" 1/8" 30 mm
88700-04-53 1/4" 5/32" 30 mm
88700-06-04 3/8" 1/4" 35 mm
88700-08-04 1/2" 1/4" 43 mm
88700-08-06 1/2" 3/8" 43 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
