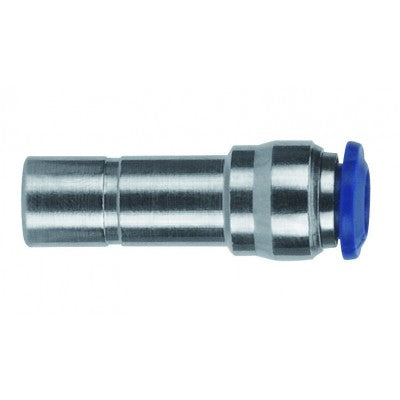

88700-04-02 AIGNEP | 87 / 88 Series | Tube Reducer | 3/8" Male Stud x 1/8" Tube | Pack of 10
88700-04-02 by AIGNEP | 87 / 88 Series | Tube Reducer | 3/8" Male Stud x 1/8" Tube | Pack of 10
88700-04-02 AIGNEP | 87 / 88 Series | Tube Reducer | 3/8" Male Stud x 1/8" Tube | Pack of 10

88700-04-02 by AIGNEP | 87 / 88 Series | Tube Reducer | 3/8" Male Stud x 1/8" Tube | Pack of 10

Save $11.34 Save $11.34
$28.35
$28.35 - $28.35
$28.35
$17.01
$17.01 - $17.01
$17.01

Package Quantity: 10 ea

Specifications for Variant SKU: 88700-04-02 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Stub, 1/8in Push-to-Connect
Material(s): Nickel Plated Brass
Seal Material(s): NBR 70

Tube Reducer

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

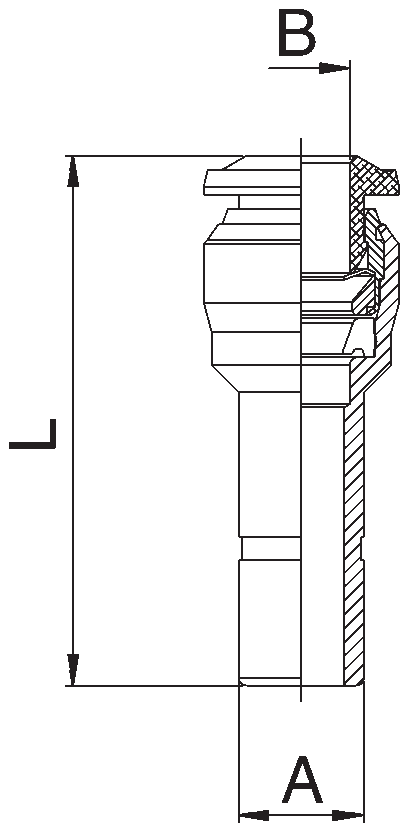

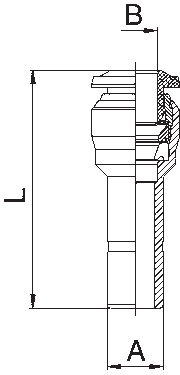

Product Number A B (IN) L
88700-04-02 1/4" 1/8" 30 mm
88700-04-53 1/4" 5/32" 30 mm
88700-06-04 3/8" 1/4" 35 mm
88700-08-04 1/2" 1/4" 43 mm
88700-08-06 1/2" 3/8" 43 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
