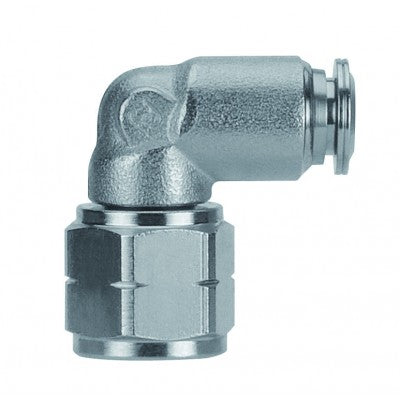

89105-06-02 AIGNEP | 89 Series | Swivel Female 90° Elbow Metal Release Collet | 3/8" Tube x 1/8" Female NPTF | Pack of 10
89105-06-02 by AIGNEP | 89 Series | Swivel Metal Release Collet | 3/8" Tube x 1/8" Female NPTF | 90° Elbow | Pack of 10
89105-06-02 AIGNEP | 89 Series | Swivel Female 90° Elbow Metal Release Collet | 3/8" Tube x 1/8" Female NPTF | Pack of 10

89105-06-02 by AIGNEP | 89 Series | Swivel Metal Release Collet | 3/8" Tube x 1/8" Female NPTF | 90° Elbow | Pack of 10

Save $24.83 Save $24.83
$62.08
$62.08 - $62.08
$62.08
$37.25
$37.25 - $37.25
$37.25

Package Quantity: 10 ea

Specifications for Variant SKU: 89105-06-02 AIGNEP | 10 |
Series: 89 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Push-to-Connect, 1/8in Female NPTF
Material(s): Nickel Plated Brass
Seal Material(s): NBR 70

Female Swivel Elbow Metallic

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: NPTF

Product Number Tube A NPTF B (IN) B L1 L2 CH1 CH2
89105-53-02 5/32" 1/8" 0.374" 9.5 mm 17.5 mm 17.5 mm 9 mm 13 mm
89105-53-04 5/32" 1/4" 0.531" 13.5 mm 17.5 mm 20 mm 9 mm 16 mm
89105-04-02 1/4" 1/8" 0.374" 9.5 mm 21.5 mm 19 mm 11 mm 13 mm
89105-04-04 1/4" 1/4" 0.531" 13.5 mm 21.5 mm 21.5 mm 11 mm 16 mm
89105-06-02 3/8" 1/8" 0.374" 9.5 mm 27 mm 23 mm 13 mm 13 mm
89105-06-04 3/8" 1/4" 0.531" 13.5 mm 27 mm 24 mm 16 mm 16 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
