89110-06-04 AIGNEP | 89 Series | Swivel Male 90° Elbow Metal Release Collet | 3/8" Tube x 1/4" Swift-Fit Male | Pack of 10

89110-06-04 by AIGNEP | 89 Series | Swivel Metal Release Collet | 3/8" Tube x 1/4" Swift-Fit Male | 90° Elbow | Pack of 10

Save $0.33

$33.92

$33.92 - $33.92

$33.92

$33.59

$33.59 - $33.59

$33.59

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 89110-06-04 AIGNEP \| 10 \|
Series:	89 Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Push-to-Connect, 1/4in Male Swift-Fit
Material(s):	Nickel Plated Brass
Seal Material(s):	NBR 70

Swivel Elbow Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

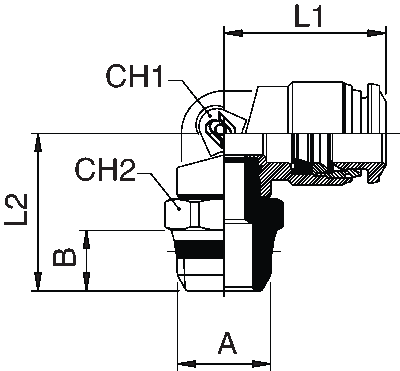

Product Number	Tube	A	B (IN)	B	L1	L2	CH1	CH2	D
89110-02-32	1/8"	10-32	0.197"	5 mm	18 mm	20 mm	9 mm	8 mm	10 mm
89110-02-02	1/8"	1/8"	0.276"	7 mm	18 mm	9 mm	9 mm	13 mm	10 mm
89110-02-04	1/8"	1/4"	0.334"	8.5 mm	18 mm	19.6 mm	9 mm	15 mm	10 mm
89110-53-32	5/32"	10-32	0.197"	5 mm	18 mm	20 mm	9 mm	8 mm	10 mm
89110-53-02	5/32"	1/8"	0.216"	5.5 mm	18 mm	19.5 mm	9 mm	13 mm	10 mm
89110-53-04	5/32"	1/4"	0.276"	7 mm	18 mm	21 mm	9 mm	15 mm	10 mm
89110-04-32	1/4"	10-32	0.197"	5 mm	21 mm	22 mm	11 mm	8 mm	14.5 mm
89110-04-02	1/4"	1/8"	0.276"	7 mm	22.5 mm	19.7 mm	11 mm	13 mm	12.5 mm
89110-04-04	1/4"	1/4"	0.334"	8.5 mm	22.5 mm	19.7 mm	11 mm	15 mm	12.5 mm
89110-04-06	1/4"	3/8"	0.354"	9 mm	22.5 mm	19.7 mm	11 mm	17 mm	12.5 mm
89110-05-02	5/16"	1/8"	0.216"	5.5 mm	22.5 mm	22.5 mm	12 mm	13 mm	14.5 mm
89110-05-04	5/16"	1/4"	0.276"	7 mm	22.5 mm	22.5 mm	12 mm	15 mm	14.5 mm
89110-05-06	5/16"	3/8"	0.295"	7.5 mm	22.5 mm	23 mm	12 mm	17 mm	14.5 mm
89110-05-08	5/16"	1/2"	0.354"	9 mm	22.5 mm	25.5 mm	12 mm	21 mm	14.5 mm
89110-06-02	3/8"	1/8"	0.276"	7 mm	26.5 mm	26 mm	14 mm	14 mm	17.5 mm
89110-06-04	3/8"	1/4"	0.334"	8.5 mm	26.5 mm	26 mm	14 mm	15 mm	17.5 mm
89110-06-06	3/8"	3/8"	0.354"	9 mm	24.5 mm	26 mm	14 mm	17.5 mm	17.5 mm
89110-06-08	3/8"	1/2"	0.334"	8.5 mm	26.5 mm	26 mm	14 mm	21 mm	17.5 mm
89110-08-04	1/2"	1/4"	0.334"	8.5 mm	30.5 mm	28.5 mm	16 mm	15 mm	21.5 mm
89110-08-06	1/2"	3/8"	0.354"	9 mm	30.5 mm	26.5 mm	16 mm	17 mm	21.5 mm
89110-08-08	1/2"	1/2"	0.413"	10.5 mm	30.5 mm	29 mm	16 mm	21 mm	21.5 mm
