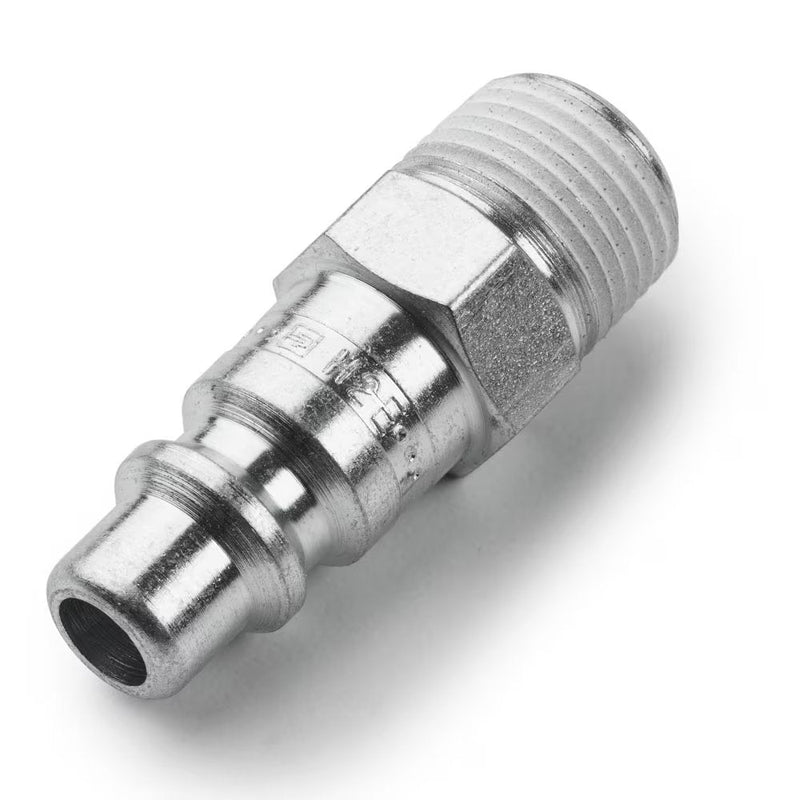

9084 23 14 by Parker | Acting Safety Couplers | 1/4" Male NPT Plug x 1/4" Body ID | 1.65" Length | Straight | Nickel-Plated Brass

9084 23 14 by Parker | Acting Safety Couplers | 1/4" Male NPT Plug x 1/4" Body ID | 1.65" Length | Straight | Nickel-Plated Brass | Pack of 10

Save $0.81 Save $0.81
$20.81
$20.81 - $20.81
$20.81
$20.00
$20.00 - $20.00
$20.00

by Parker Hannifin
C9000 Nylon QuickActing Safety Couplers:9084 - male straight NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 9084 23 14 Parker | 10 |
Series: 9084 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Special Properties: Lightweight, Corrosion Resistance
Series C9000 - Self-Venting Turning Motion Technology: Self-Venting System The range of ergonomic polymer couplers has been designed for the safety oh operators and machinery while giving very high energy efficiency suited for any type of installation.
      Safety Note:
  • Prevents risk of whiplash, the quick-acting vent allow disconnection to be carried out in total safety.
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 16 bar
Material:
  • Coupling: Technical polymer or aluminum, nickel plated brass, stainless steel
  • Plug: Nickel-Plated Steel
  • Seals: NBR
Working Temperature:
  • -20°C up to +60°C (NBR)
Flow Rate Air:
  • ARO 5.5: 1.250 I/min.
  • Euro 7.2: 2.000 I/min.
  • ISO B 5.5: 1.250 I/min.
  • ISO B 8.0: 2.400 I/min.
    • (inlet pressure 6 bar, pressure drop 0.5 bar)
Part Number NPT (C) F L L1 Oz
9084 23 14 1/4" .551" 1.65" .93" .47" 1.01 Oz
9084 23 18 3/8" .669" 1.59" .93" .47" 1.35 Oz
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
