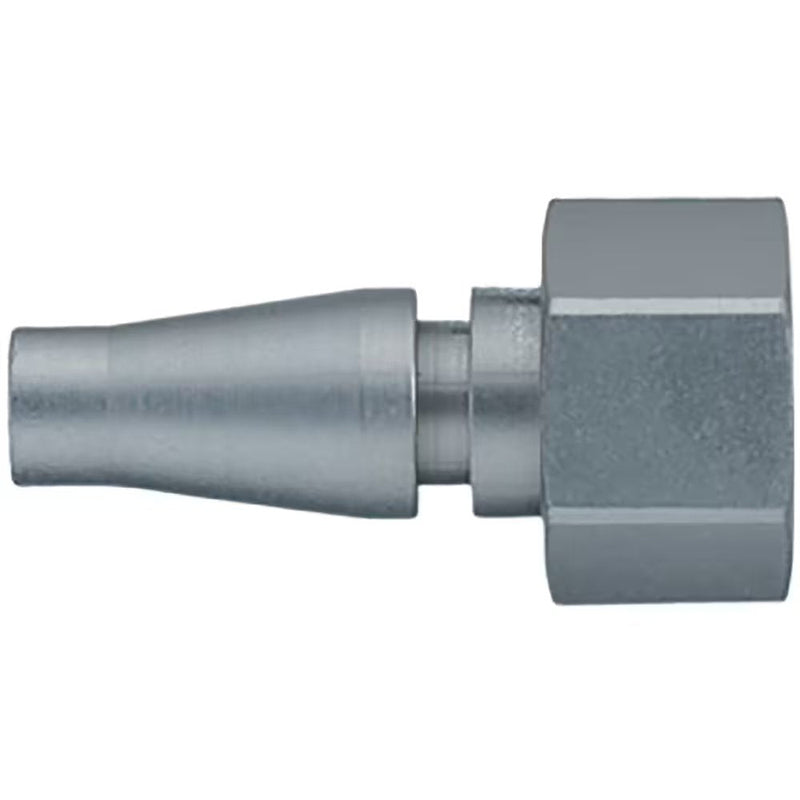

9086 17 13 by Parker | Legris Plug Quick Disconnect | 1/4" Female BSPP Thread | 17mm Hex | 36mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $50.58

$126.45

$126.45 - $126.45

$126.45

$75.87

$75.87 - $75.87

$75.87

by Parker Hannifin
Series 17 - Brass/Steel:9086 Plug without valve, Female Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 9086 17 13 Parker \| 5 \|
Series:	17 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Special Properties:	Slim, Lightweight

Series 20 - Brass/Steel Series: Single Shut-Off	Brass/Steel coupling with British profile specifically suited to compressed air applications in industry. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. Versatile due to slim design and light weight. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass / Steel Plug: Nickel-Plated Steel Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	890 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	11 l/min. (Pressure dop 0.5 bar)


Part Number	A	HEX	L	L1
9086 17 13	1/8"	17 mm	36 mm	9 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
