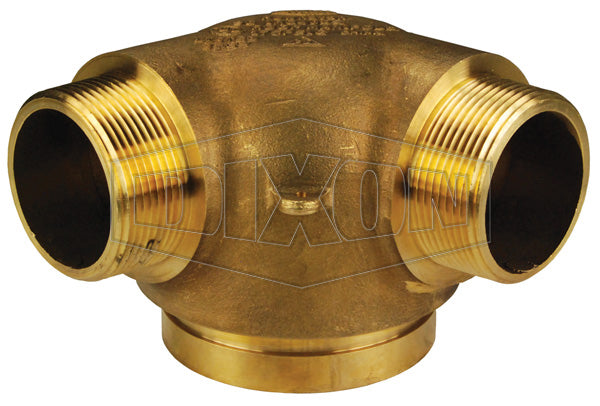

90IRC4025F Dixon Cast Brass 90 deg. Two Way Male Outlet - Roof Connection - Bottom Outlet - 4" Pipe Inlet x Two 2-1/2" Male NST(NH) Outlets (Global)

Name: 90IRC4025F Dixon Cast Brass 90 deg. Two Way Male Outlet - Roof Connection - Bottom Outlet - 4" Pipe Inlet x Two 2-1/2" Male NST(NH) Outlets (Global)
Brand: Dixon
SKU: 90IRC4025F Dixon
Price: 216.16 USD
Availability: InStock

Save $144.11

$360.27

$360.27 - $360.27

$360.27

$216.16

$216.16 - $216.16

$216.16

Dixon Fire Fittings
Roof Connections - Bottom Outlet - Cast Brass

Used to create roof connections, fire pump test connections, wall hydrants or sidewalk (free standing) hydrants.

Quantity

Specifications for Variant SKU: 90IRC4025F Dixon
Shape (Orientation):	Y
Ends Configuration:	4in Female NPT, 2-1/2in Male NST, 2-1/2in Male NST, Some Ends Match
Material(s):	Brass

Features:
Provides 250 GPM minimum per outlet. UL listed. Maximum operating pressure: 175 PSI at 70°F (21°C).


Size	A	B	C	D
4" x 2-1/2" x 2-1/2"	7-1/2"	6-3/4"	5-1/8"	4-1/2"
6" x 2-1/2" x 2-1/2"	9"	8-1/2"	7-1/2"	5"

Part Number	Inlet	(2) Outlets	Weight (Lbs.)
90IRC4025*	4" Pipe	2-1/2" Male NPT	6.0000
90FRC4025	4" Pipe	2-1/2" Male NPT	6.1800
90IRC4025F*	4" Pipe	2-1/2" Male NST(NH)	6.0000
90FRC4025F	4" Pipe	2-1/2" Male NST(NH)	10.3000
90FRC6025	6" Pipe	2-1/2" Male NPT	18.2400
90FRC6025F	6" Pipe	2-1/2" Male NST(NH)	18.2200
90IRC4025G*	4" Groove	2-1/2" Male NPT	7.0500
90IRC4025GF*	4" Groove	2-1/2" Male NST(NH)	7.0500

* Parts are Imported, all others made in the USA

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
