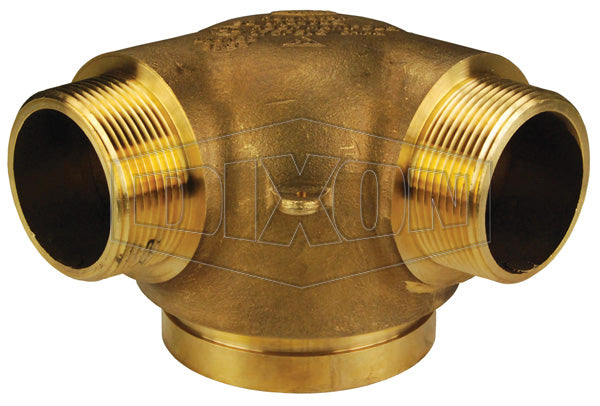

90FRC6025F Dixon Cast Brass 90 deg. Two Way Male Outlet - Roof Connection - Bottom Outlet - 6" Pipe Inlet x Two 2-1/2" Male NST(NH) Outlets

Name: 90FRC6025F Dixon Cast Brass 90 deg. Two Way Male Outlet - Roof Connection - Bottom Outlet - 6" Pipe Inlet x Two 2-1/2" Male NST(NH) Outlets
Brand: Dixon
SKU: 90FRC6025F Dixon
Price: 514.43 USD
Availability: InStock

Save $24.55

$538.98

$538.98 - $538.98

$538.98

$514.43

$514.43 - $514.43

$514.43

Dixon Fire Fittings
Roof Connections - Bottom Outlet - Cast Brass

Used to create roof connections, fire pump test connections, wall hydrants or sidewalk (free standing) hydrants.

Quantity

Specifications for Variant SKU: 90FRC6025F Dixon
Shape (Orientation):	Y
Ends Configuration:	6in Female NPT, 2-1/2in Male NST, 2-1/2in Male NST, Some Ends Match
Material(s):	Brass

Features:
Provides 250 GPM minimum per outlet. UL listed. Maximum operating pressure: 175 PSI at 70°F (21°C).


Size	A	B	C	D
4" x 2-1/2" x 2-1/2"	7-1/2"	6-3/4"	5-1/8"	4-1/2"
6" x 2-1/2" x 2-1/2"	9"	8-1/2"	7-1/2"	5"

Part Number	Inlet	(2) Outlets	Weight (Lbs.)
90IRC4025*	4" Pipe	2-1/2" Male NPT	6.0000
90FRC4025	4" Pipe	2-1/2" Male NPT	6.1800
90IRC4025F*	4" Pipe	2-1/2" Male NST(NH)	6.0000
90FRC4025F	4" Pipe	2-1/2" Male NST(NH)	10.3000
90FRC6025	6" Pipe	2-1/2" Male NPT	18.2400
90FRC6025F	6" Pipe	2-1/2" Male NST(NH)	18.2200
90IRC4025G*	4" Groove	2-1/2" Male NPT	7.0500
90IRC4025GF*	4" Groove	2-1/2" Male NST(NH)	7.0500

* Parts are Imported, all others made in the USA
