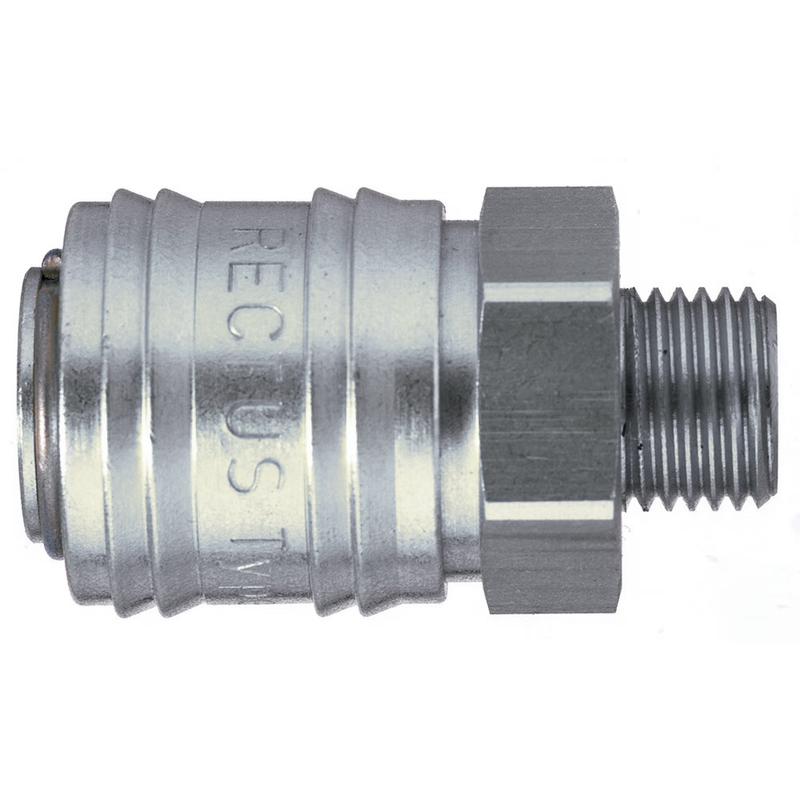

9101 24 17 by Parker | Legris Coupler Quick Disconnect | 3/8" Male BSPP Thread | 22 mm Hex | 43 mm Length | Straight | Nickel-Plated Brass

9101 24 17 by Parker | Legris Coupler Quick Disconnect | 3/8" Male BSPP Thread | 22 mm Hex | 43 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $74.58 Save $74.58
$186.45
$186.45 - $186.45
$186.45
$111.87
$111.87 - $111.87
$111.87

by Parker Hannifin
Stainless Steel Compression Fittings / Stud Fittings:9101 Coupler with valve, Male Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 9101 24 17 Parker | 5 |
Series: Series 24
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Vibration Resistance
Series 24 - Brass/Steel Series: Single Shut-Off 1/4" Industrial brass coupling according to ISO 6150 B and US MIL-SPEC 4109. Coupling system with single-hand operation, which stands out for its solid brass design and corresponding sleeve design. Hardened steel plug counters and effects of external forces.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Brass
  • Plug: Nickel-Plated Steel or Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 820 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 7.4 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 D
9101 24 13 1/4" 22 mm 43 mm 9 mm 25 mm
9101 24 17 3/8" 22 mm 43 mm 9 mm 25 mm
