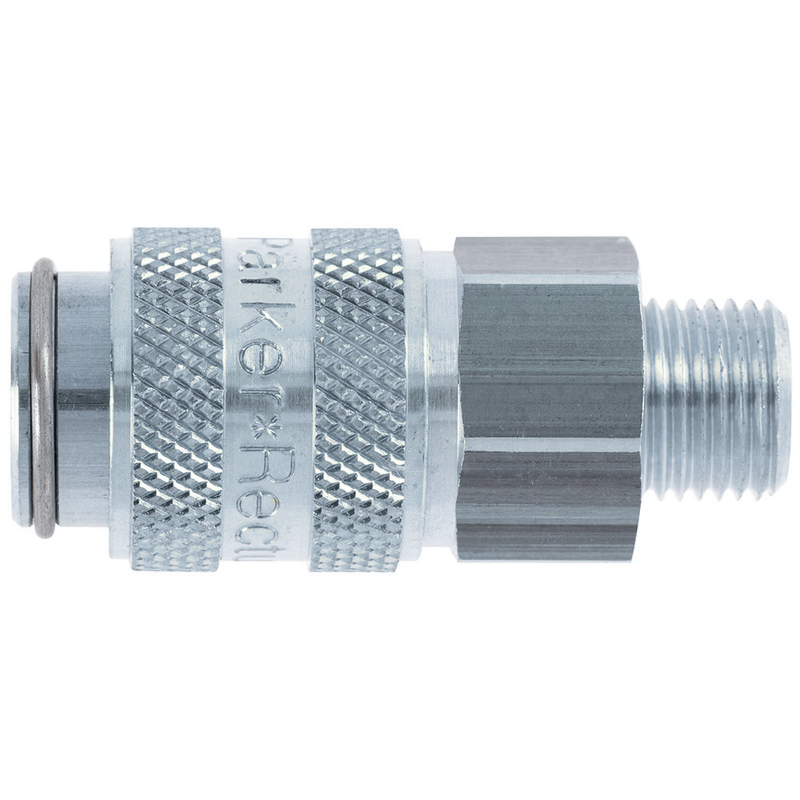

9201 21 10 by Parker | Legris Coupler Quick Disconnect | 1/8" Male BSPP Thread | 14 mm Hex | 36 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $2.67

$98.54

$98.54 - $98.54

$98.54

$95.87

$95.87 - $95.87

$95.87

by Parker Hannifin
Series 21 - Brass/Steel:9201 Coupler with valve, Male Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 9201 21 10 Parker \| 5 \|
Series:	21 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Series 20 - Brass/Steel Series: Single Shut-Off	Mini industrial coupling with the world's most popular profile in this nominal diameter. Above average flow performance for liquid and gaseous media. Coupling system with single-hands operation. Small dimensions and large bandwidth in materials and valve variants. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass Plug: Nickel-Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	550 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	7 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1	D	Kg
9201 21 10	1/8"	14 mm	36 mm	7 mm	16 mm	.06 Kg
9201 21 13	1/4"	14 mm	38 mm	9 mm	16 mm	.077 Kg
