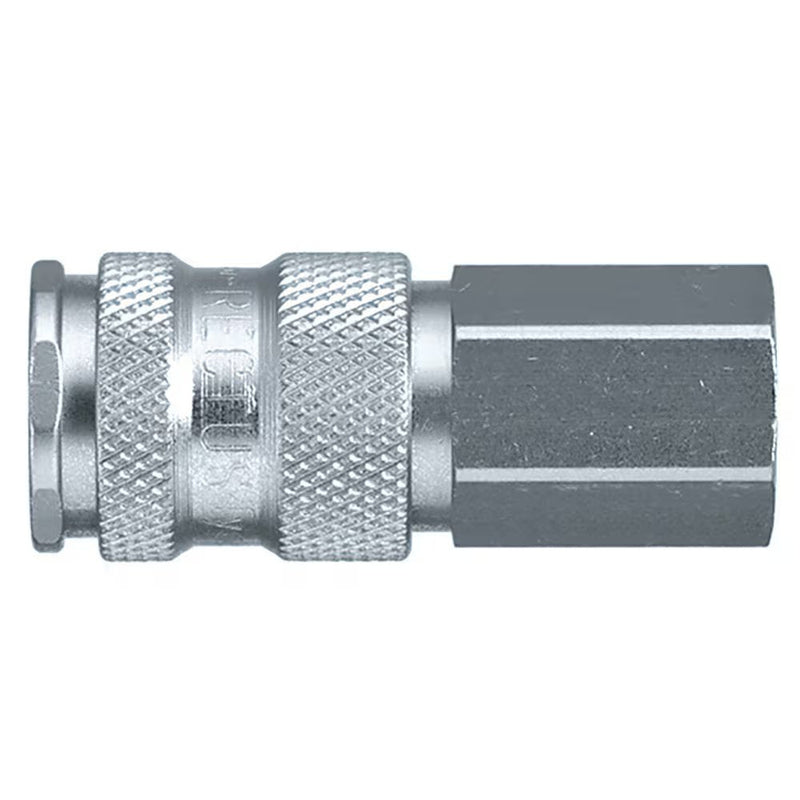

9214 25 13 by Parker | Legris Coupler Quick Disconnect | 1/4" Female BSPP Thread | 19mm Hex | 56mm Length | Straight | Nickel-Plated Brass/Steel

Save $21.55

$53.87

$53.87 - $53.87

$53.87

$32.32

$32.32 - $32.32

$32.32

by Parker Hannifin
Series 25 - Brass/Steel:9214 Coupler with valve, Female Thread

Specifications for Variant SKU: 9214 25 13 Parker
Series:	Series 25
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Nickel-Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Series 25 - Brass/Steel Series: Double Shut-Off	Universal industrial coupling with European standard profile. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The series stands out for its robust design and long service life even with the harshest use. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass/Steel Plug: Zinc Plated Steel Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	710 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	7.1 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1	D
9214 25 13	1/4"	19 mm	56 mm	10 mm	23 mm
9214 25 17	3/8"	19 mm	55 mm	9 mm	23 mm
9214 25 21	1/2"	24 mm	58 mm	12 mm	23 mm
