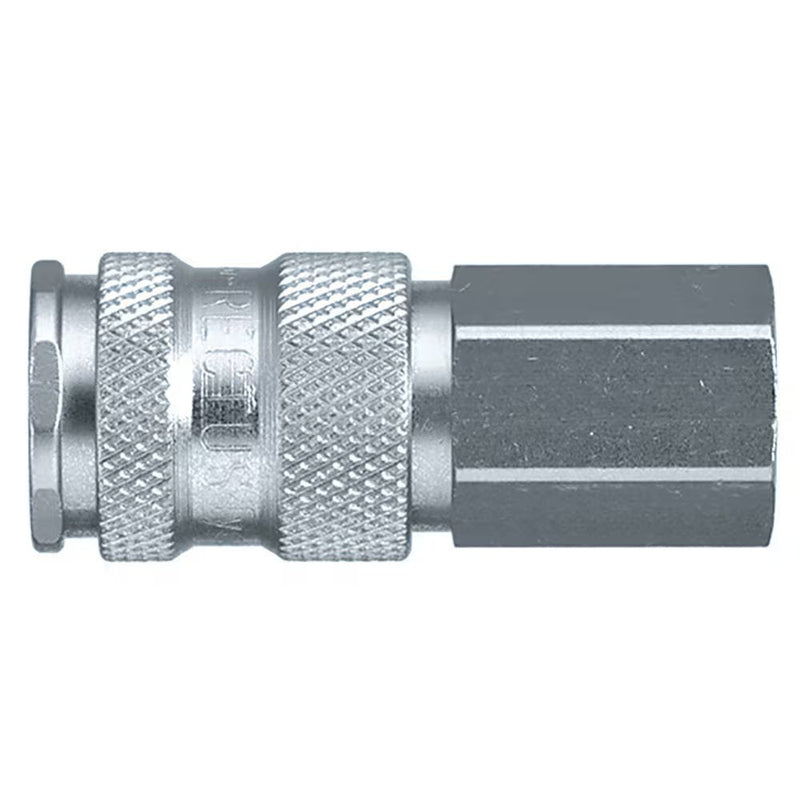

9214 25 21 by Parker | Legris Coupler Quick Disconnect | 1/2" Female BSPP Thread | 24 mm Hex | 58 mm Length | Straight | Nickel-Plated Brass/Steel

Save $1.14

$41.51

$41.51 - $41.51

$41.51

$40.37

$40.37 - $40.37

$40.37

by Parker Hannifin
Series 25 - Brass/Steel:9214 Coupler with valve, Female Thread

Quantity

Specifications for Variant SKU: 9214 25 21 Parker
Series:	Series 25
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Nickel-Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Series 25 - Brass/Steel Series: Double Shut-Off	Universal industrial coupling with European standard profile. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The series stands out for its robust design and long service life even with the harshest use. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass/Steel Plug: Zinc Plated Steel Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	710 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	7.1 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1	D
9214 25 13	1/4"	19 mm	56 mm	10 mm	23 mm
9214 25 17	3/8"	19 mm	55 mm	9 mm	23 mm
9214 25 21	1/2"	24 mm	58 mm	12 mm	23 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
