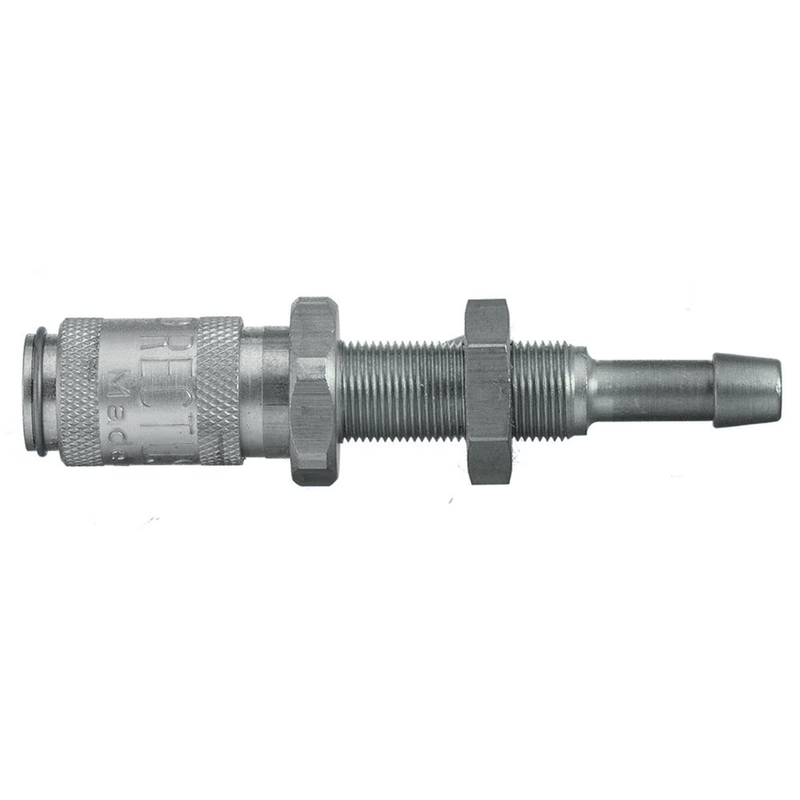

9226 20 03 by Parker | Legris Coupler Quick Disconnect w/ Panel Mount | 3 mm Hose Barb x M7x0.5 Metric Thread | 12 mm Hex | 11 mm Hex (1) | 51 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $122.27

$305.67

$305.67 - $305.67

$305.67

$183.40

$183.40 - $183.40

$183.40

by Parker Hannifin
Series 20 - Brass/Steel:9226 Coupler with valve, Panel Mount with Hose Barb

Package Quantity: 5 Units

Specifications for Variant SKU: 9226 20 03 Parker \| 5 \|
Series:	20 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Series 20 - Brass/Steel Series: Double Shut-Off	Mini Industrial coupling with internationally used profile. Frequent use in medical technology and chemistry/pharmacy. Coupling system with single-hand operation. Wide range of applications with different media. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Brass Plug: Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	130 Nl/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	1.2 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	Hex 1	B	G	L	L1	L2	D	Kg
9226 20 03	3 mm	12 mm	11 mm	3 mm	M7x0.5	51 mm	13 mm	17 mm	10 mm	.015 Kg
9226 20 04	4 mm	12 mm	11 mm	3 mm	M7x0.5	51 mm	13 mm	17 mm	10 mm	.015 Kg
