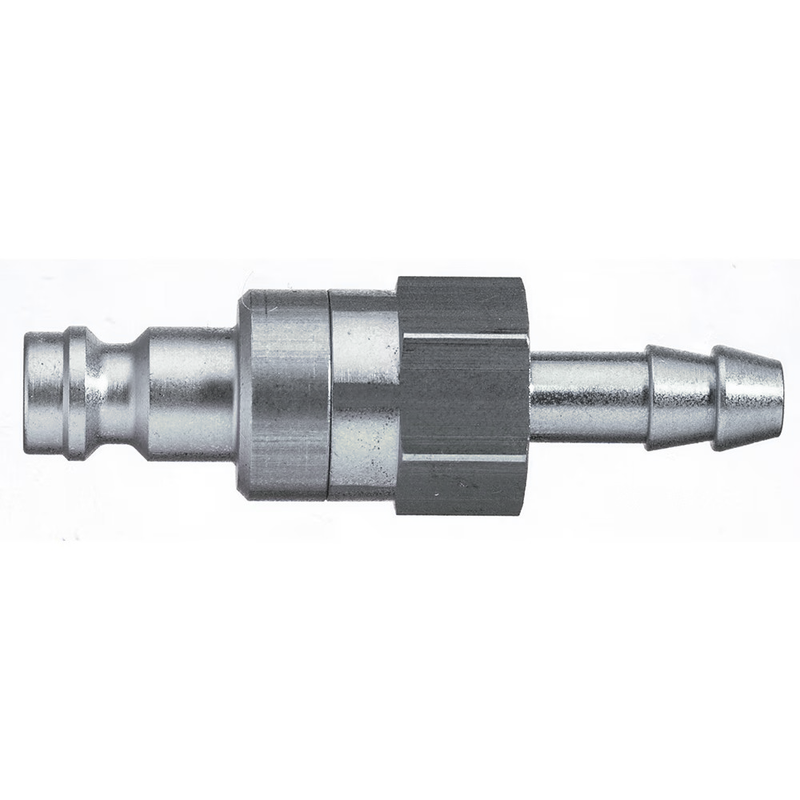

9285 21 04 by Parker | Legris Plug Quick Disconnect | 4 mm Hose Barb | 14 mm Hex | 50 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $94.45

$236.12

$236.12 - $236.12

$236.12

$141.67

$141.67 - $141.67

$141.67

by Parker Hannifin
Series 21 - Brass/Steel:9285 Plug with valve, Hose Barb

Package Quantity: 5 Units

Specifications for Variant SKU: 9285 21 04 Parker \| 5 \|
Series:	21 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Series 21 - Brass/Steel Series: Double Shut-Off	Mini industrial coupling with the world's most popular profile in this nominal diameter. Above average flow performance for liquid and gaseous media. Coupling system with single-hands operation. Small dimensions and large bandwidth in materials and valve variants. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass Plug: Nickel-Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	310 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	2.7 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1	Kg
9285 21 04	4 mm	14 mm	50 mm	17 mm	.049 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
