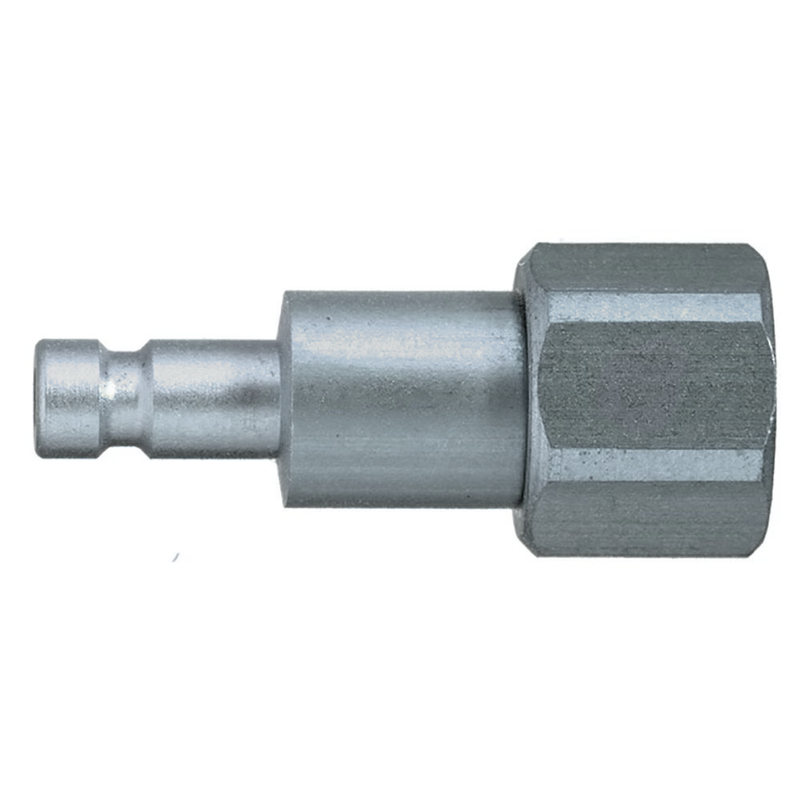

9286 20 10 by Parker | Legris Plug Quick Disconnect | 1/8" Female BSPP Thread | 12 mm Hex | 30 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $95.78

$239.45

$239.45 - $239.45

$239.45

$143.67

$143.67 - $143.67

$143.67

by Parker Hannifin
Series 20 - Brass/Steel:9286 Plug with valve, Female Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 9286 20 10 Parker \| 5 \|
Series:	20 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Series 20 - Brass/Steel Series: Double Shut-Off	Mini Industrial coupling with internationally used profile. Frequent use in medical technology and chemistry/pharmacy. Coupling system with single-hand operation. Wide range of applications with different media. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Brass Plug: Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	130 Nl/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	1.2 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1	Kg
9286 20 19	M5	9 mm	26 mm	5 mm	.007 Kg
9286 20 10	1/8"	12 mm	30 mm	7 mm	.01 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
