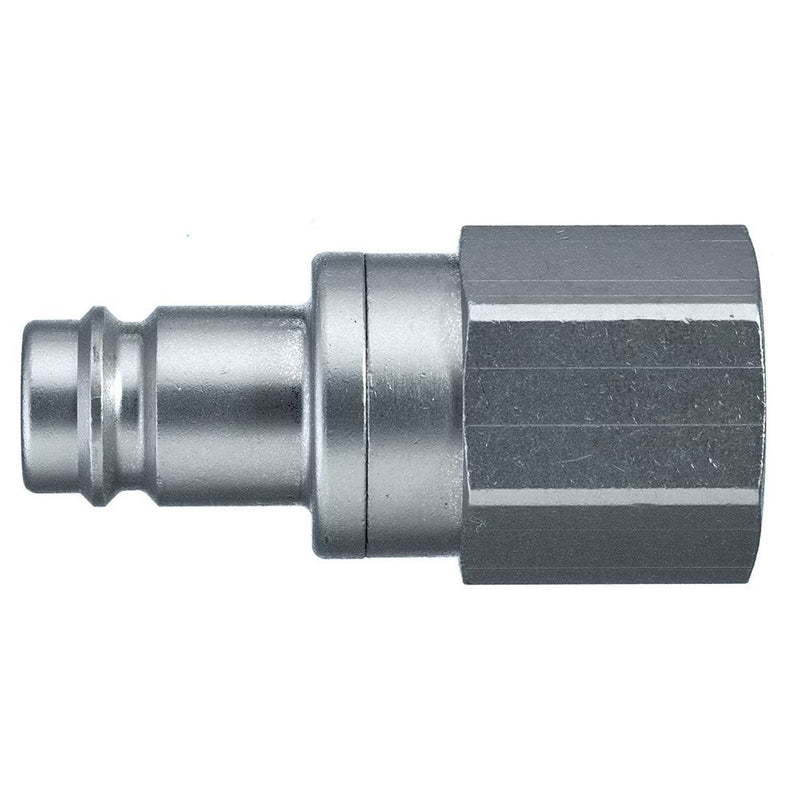

9286 27 17 by Parker | Legris Plug Quick Disconnect | 3/8" Female BSPP Thread | 24 mm Hex | 55 mm Length | Nickel-Plated Brass

9286 27 17 by Parker | Legris Plug Quick Disconnect | 3/8" Female BSPP Thread | 24 mm Hex | 55 mm Length | Nickel-Plated Brass

Save $1.90 Save $1.90
$69.74
$69.74 - $69.74
$69.74
$67.84
$67.84 - $67.84
$67.84

by Parker Hannifin
Series 27 - Brass/Steel:9286 Plug with valve, Female Thread
Specifications for Variant SKU: 9286 27 17 Parker
Series: Series 27
Shape (Orientation): No Orientation
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Series 27 - Brass/Steel Series: Double Shut-Off 1/2" Universal industrial coupling with standard European profile for use with large pneumatic consumers. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The series stands out for its robust design (steel sleeve), extremely high flow and long service life even with harshest use. The collar design minimizes damage to the valve body.
    Available on request:
  • in brass material with nickel plating
  • with additional end connections
  • other seals for different temperature ranges and fluids
    •
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Brass
  • Plug: Nickel Plated Steel
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 950 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 14 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1
9286 27 17 3/8" 24 mm 55 mm 9 mm
9286 27 21 1/2" 24 mm 55 mm 12 mm
