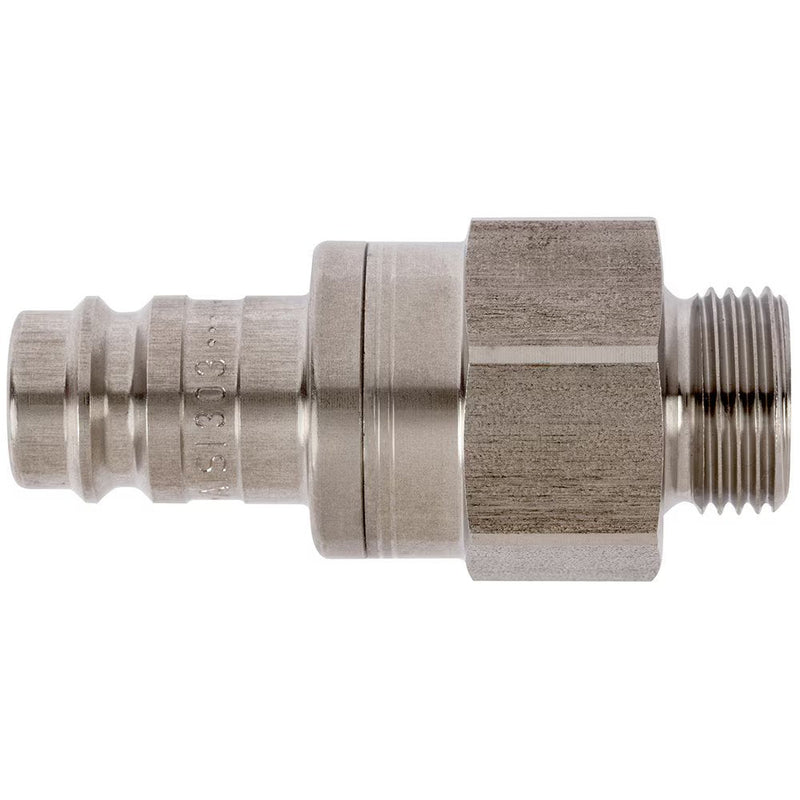

9287X27 17 by Parker | Legris Plug Quick Disconnect | 3/8" Female BSPP Thread | 24 mm Hex | 56 mm Length | Stainless Steel

Save $74.18

$185.45

$185.45 - $185.45

$185.45

$111.27

$111.27 - $111.27

$111.27

by Parker Hannifin
Series 27 - Stainless Steel:9287X27 Plug with valve, Male Thread

Specifications for Variant SKU: 9287X27 17 Parker
Series:	Series 27
Shape (Orientation):	No Orientation
Material(s):	Stainless Steel
Seal Material(s):	FKM
Special Properties:	Corrosion Resistance

Series 27 - Brass/Steel Series: Double Shut-Off	1/2" Universal industrial coupling with standard European profile for use with large pneumatic consumers. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The series stands out for its robust design, extremely high flow and long service life even with the harshest use. The collar design minimizes damage to the valve body. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: AISI 303 / AISI 316L Plug: AISI 303 / AISI 316L Seals: FKM
Working Temperature:	-15°C up to +200°C (FKM)
Flow Rate Air:	950 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	14 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1
9287X27 17	3/8"	24 mm	56 mm	9 mm
