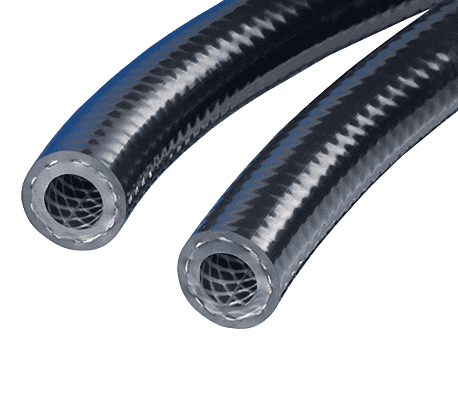

A1243H-08X300 Kuri-Tec by Kuriyama | A1243 Series | Non-Toxic Air Breathing Hose | 1/2" ID | .625" | PVC | 300ft Length

A1243H-08X300 Kuri-Tec by Kuriyama | A1243 Series | Non-Toxic Air Breathing Hose | 1/2" ID | .625" | PVC | 300ft Length

Save $432.00 Save $432.00
$1,080.00
$1,080.00 - $1,080.00
$1,080.00
$648.00
$648.00 - $648.00
$648.00

Kuriyama Kuri Tec® A1243 Series Non-Toxic PVC Air Breathing Hose A specially-designed non-toxic air breathing hose that provides low temperature flexibility and low odor.

Package Quantity: 300 FT

Specifications for Variant SKU: A1243H-08X300 Kuriyama | 300 |
Brand: Kuri Tec
Series: A1243H Series
Hose Color(s): Black
Internal Diameter: 0.50in
Outer Diameter: 0.625in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, RoHS Compliant

SPECIFICATIONS

Application: General Type C air supply lines, Paint spray booths, Indoor in-plant air service, Outdoor open air service. SAE Rating: N/A
Other Ratings: N/A Tube: Clear PVC compound, formulated in compliance with FDA(03) and RoHS(15) requirements.
Reinforcement: High tensile strength yarn. Cover: Non-toxic, U. V. and weather resistant black PVC compound.
Temperature Range: -15 deg. F (-26 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(03), NIOSH(14), RoHS(15)
Other Features:
  • Good low temperature flexibility.
  • Low odor, compared with traditional rubber hose.
  • Heavy wall construction matches the dimensions of rubber hose.
  • Light-wall version available (1/4" size).
  • One-piece lengths.
  • Hose meets NIOSH(14) requirements for Type C respirator.
Part Number Nominal ID Nominal OD Max. Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil
A1243-04X500 1/4" 6.5mm .500" 12.7mm 250 PSI 150 PSI 500 ft 40 lbs.
A1243H-04X300 1/4" 6.5mm .625" 15.9mm 250 PSI 150 PSI 300 ft 42 lbs.
A1243H-06X300 3/8" 9.5mm .688" 17.5mm 250 PSI 150 PSI 300 ft 43 lbs.
A1243H-08X300 1/2" 12.7mm .840" 21.3mm 250 PSI 150 PSI 300 ft 66 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note : NIOSH only certifies complete breathing respirators and does not issue certifications on individual components, such as hoses. All replacement hoses for NIOSH-certified apparatus must have prior NIOSH certification as a part of that unit.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
