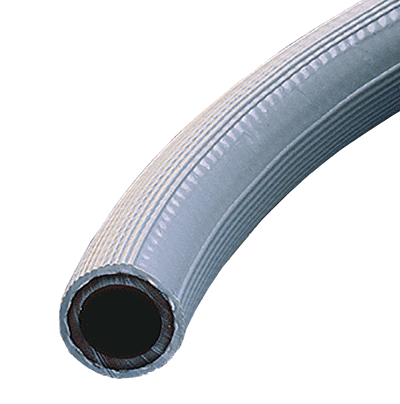

A1628-06X400 Kuri-Tec by Kuriyama | A1628 Series | Blend Reinforced Spray Hose | 3/8" ID | .625" OD | 300 PSI | PVC/Polyurethane | 400ft Length

A1628-06X400 Kuri-Tec by Kuriyama | A1628 Series | Blend Reinforced Spray Hose | 3/8" ID | .625" OD | 300 PSI | PVC/Polyurethane | 400ft Length

Save $146.88 Save $146.88
$514.08
$514.08 - $514.08
$514.08
$367.20
$367.20 - $367.20
$367.20

Kuriyama Kuri Tec® A1628 Series 300 PSI PVC/Polyurethane Blend Reinforced Spray Hose Unique PVC/Polyurethane blended core provides excellent resistance to hydrocarbon-based lawn care and pest control chemicals. Reinforced with high tensile strength yarn. PVC ribbed cover provides abrasion resistance.

Package Quantity: 400 FT

Specifications for Variant SKU: A1628-06X400 Kuriyama | 400 |
Brand: Kuri Tec
Series: A1628 Series
Hose Color(s): Grey
Internal Diameter: 0.375in
Outer Diameter: 0.625in
Tubing Construction: PVC/Polyurethane Blend
Cover Construction: Ribbed PVC
Special Properties: Pin Pricked Hose Cover, Ribbed Hose Cover

SPECIFICATIONS

Application: Pest control spraying, Agricultural spraying, Commercial weed spraying SAE Rating: N/A
Other Ratings: N/A Tube: Black PVC/polyurethane blend
Reinforcement: High tensile strength yarn. Cover: Ribbed PVC.
Temperature Range: +15 deg. F (-10 deg. C) to +160 deg. F (+70 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Extremely tough and kink resistant.
  • PVC/Polyurethane blended core - provides better chemical resistance than comparable all PVC hoses.
  • Ribbed cover provides excellent abrasion-resistance.
  • 300 PSI working pressure.
  • Pin-pricked cover vents vapor - helps prevent ballooning.
  • Silicone-free.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Max. Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil
A1628-06X300 3/8" 9.5mm .625" 15.9mm 300 PSI 150 PSI 300 ft 36 lbs.
A1628-06X400 3/8" 9.5mm .625" 15.9mm 300 PSI 150 PSI 400 ft 47 lbs.
A1628-08X300 1/2" 12.7mm .770" 19.6mm 300 PSI 150 PSI 300 ft 49 lbs.
A1628-08X400 1/2" 12.7mm .770" 19.6mm 300 PSI 150 PSI 400 ft 65 lbs.
A1628-12X300 3/4" 19.1mm 1.060" 26.9mm 200 PSI 100 PSI 300 ft 80 lbs.
A1628-16X200 1" 25.4mm 1.306" 33.2mm 200 PSI 100 PSI 200 ft 67 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note: Use of hydraulic or reusable-type fittings are not recommended for coupling Kuri Tec® hose products. Hose claims involving use of these fittings will be disallowed.
