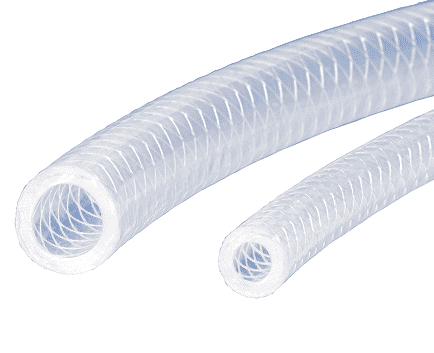

A1730-04X100 Kuri-Tec by Kuriyama | A1730 Series | Flexible FDA Clear Polyethylene Hose | 1/4" ID | .460" OD | 100ft Length

Save $7.26

$72.59

$72.59 - $72.59

$72.59

$65.33

$65.33 - $65.33

$65.33

Kuriyama Kuri Tec® Series A1730 Series Flexible FDA Clear Polyethylene Hose A flexible food grade hose for those applications in which a PVC hose may not be suitable.

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: A1730-04X100 Kuriyama \| 100 \|
Brand:	Kuri Tec
Series:	A1730 Series
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.25in
Outer Diameter:	0.46in
Tubing Construction:	Polyethylene
Cover Construction:	Polyethylene
Applicable Specs & Approvals:	Applicable FDA Requirements, RoHS Compliant

SPECIFICATIONS

Other Features:
Application:	Applications involving radiation or other contaminants that require disposal of the hose after use, Food transfer.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	82 Shore "A" polyethylene in compliance with FDA(04) and RoHS(15) requirements
Reinforcement:	High tensile strength yarn.	Cover:	68 Shore "A" flexible polyethylene cover in compliance with FDA(04) and RoHS(15) requirements
Temperature Range:	-60 deg. F (-51 deg. C) to +120 deg. F (+49 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	FDA(04), RoHS(15)
Flexible non-chlorinated non-PVC hose. Can be incinerated without harmful emissions. Light weight.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths		Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	FullCoil	CutLength
A1730-04X100	1/4"	6.5mm	.460"	11.7mm	150 PSI	75 PSI	N/A	100ft	4.5 lbs.
A1730-04X500	1/4"	6.5mm	.460"	11.7mm	150 PSI	75 PSI	500ft	N/A	22.5 lbs.
A1730-06X100	3/8"	9.5mm	.593"	15.1mm	150 PSI	75 PSI	N/A	100 ft	6.6 lbs.
A1730-06X300	3/8"	9.5mm	.593"	15.1mm	150 PSI	75 PSI	300ft	N/A	19.8lbs.
A1730-08X100	1/2"	12.7mm	.740"	18.8mm	150 PSI	75 PSI	N/A	100ft	9.1 lbs.
A1730-08X300	1/2"	12.7mm	.740"	18.8mm	150 PSI	75 PSI	300ft	N/A	17.3 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
