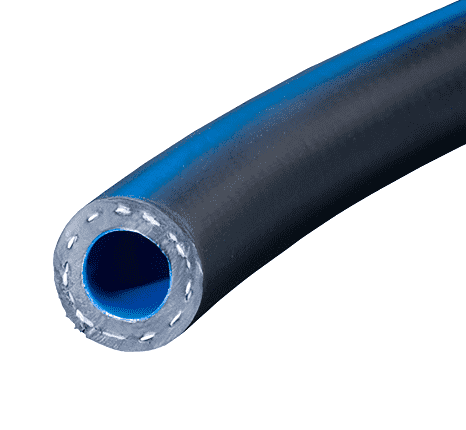

A4143-04X100 Kuriyama Kuri Tec A4143 Series Medium Pressure Paint Fluid Transfer Hose - Black - 1/4" ID - .500" OD - 100ft

A4143-04X100 Kuri-Tec by Kuriyama | A4143 Series | Medium Pressure Paint Fluid Transfer Hose | Black | 1/4" ID | .500" OD | 100ft Length

Save $11.70 Save $11.70
$130.37
$130.37 - $130.37
$130.37
$118.67
$118.67 - $118.67
$118.67

Kuriyama
Kuri Tec® A4143 Series Medium Pressure Paint Fluid Transfer Hose

Lightweight polyethylene-lined rubber blend hose that is the ideal choice for handling paint and paint-related products in a variety of applications.

Package Quantity: 100 FT

Specifications for Variant SKU: A4143-04X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: A4143 Series
Hose Color(s): Blue
Internal Diameter: 0.25in
Outer Diameter: 0.50in
Tubing Construction: LLDPE / Rubber Blend
Cover Construction: Rubber Blend
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Lower pressure transfer of enamels, lacquers and other finishes, Robotic paint spraying equipment, Low temperature transfer of chemicals, Manual paint spraying, Spraying of automobile "rustproofing" fluids. SAE Rating: N/A
Other Ratings: N/A Tube: Co-extruded blue LLDPE/rubber blend
Reinforcement: High tensile strength yarn. Cover: Black rubber blend compound; Branded "Paint Fluid"
Temperature Range: -40 deg. F (-40 deg. C) to +125 deg. F (+52 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Excellent resistance to paint fluids, lacquers and solvents.
  • Excellent flexibility.
  • Lightweight.
  • Silicone-free.
  • One-piece lengths.
  • Compatible with popular spray fittings, such as Binks and DeVilbiss.
  • Excellent cold weather properties.
  • CAUTION: NOT FOR USE WITH HOT PAINT. DO NOT EXCEED TEMPERATURE OF 125 deg. F (+52 deg. C).
  • Warning: Immersion of the hose in solvents for an extended period of time is not recommended due to potential swelling of the hose jacket.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
A4143-04X100 1/4" 6.5mm .500" 12.7mm 175 PSI 85 PSI 100 ft Coil 7 lbs.
A4143-04X500 1/4" 6.5mm .500" 12.7mm 175 PSI 85 PSI 500 ft Reel 36 lbs.
A4143-06X100 3/8" 9.5mm .690" 17.3mm 175 PSI 85 PSI 100 ft Coil 12 lbs.
A4143-06X500 3/8" 9.5mm .690" 17.3mm 175 PSI 85 PSI 500 ft Reel 60 lbs.
A4143-08X100 1/2" 12.7mm .875" 22.2mm 175 PSI 85 PSI 100 ft Coil 18 lbs.
A4143-08X500 1/2" 12.7mm .875" 22.2mm 175 PSI 85 PSI 500 ft Reel 93 lbs.
A4143-12X100 3/4" 19.0mm 1.188" 30.2mm 150 PSI 75 PSI 100 ft Coil 28 lbs.
A4143-12X300 3/4" 19.0mm 1.188" 30.2mm 150 PSI 75 PSI 300 ft Coil 85 lbs.
A4143-16X100 1" 25.4mm 1.500" 38.1mm 125 PSI 60 PSI 100 ft Coil 43 lbs.
A4143-16X200 1" 25.4mm 1.500" 38.1mm 125 PSI 60 PSI 200 ft Coil 86 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
