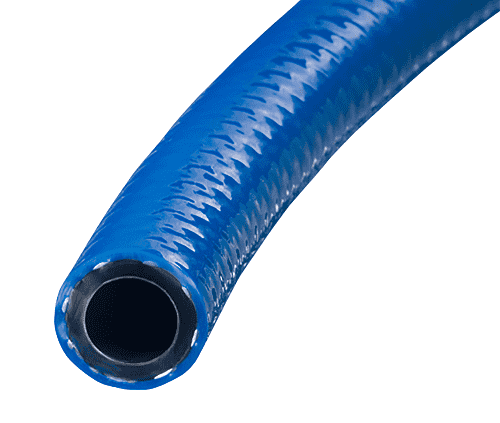

A4176-04X500 Kuri-Tec by Kuriyama | A4176 Series | Conductive Air Hose with Polyurethane Cover | Blue | 1/4" ID | .500" OD | PVC | 500ft Length

A4176-04X500 Kuri-Tec by Kuriyama | A4176 Series | Conductive Air Hose with Polyurethane Cover | Blue | 1/4" ID | .500" OD | PVC | 500ft Length

Save $358.80 Save $358.80
$1,255.80
$1,255.80 - $1,255.80
$1,255.80
$897.00
$897.00 - $897.00
$897.00

Kuriyama Kuri Tec® A4176 Series Conductive PVC Air Hose with Polyurethane Cover Uniquely different PVC air hose that prevents static build-up without the need of a static wire.

Package Quantity: 500 FT

Specifications for Variant SKU: A4176-04X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: A4176 Series
Hose Color(s): Blue
Internal Diameter: 0.25in
Outer Diameter: 0.50in
Tubing Construction: Conductive PVC
Cover Construction: Polyurethane
Special Properties: Conductive Tube

SPECIFICATIONS

Application: In-plant air service where static dissipation is required, Air lines for painting equipment, Applications requiring the use of grounded pneumatic tools. SAE Rating: N/A
Other Ratings: N/A Tube: Co-extruded electrically-conductive PVC.
Reinforcement: Spiral polyester yarn. Cover: Blue polyurethane for superior abrasion resistance.
Temperature Range: +14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Continuous flexible conductive liner assures contact with fittings, without special preparation or clamping techniques.
  • No wires to break when the hose is flexed.
  • Distinctive color and branding allows easy identification.
  • Silicone-free.
  • One-piece lengths.
  • Branded as "Conductive Air".
  • Excellent chemical and abrasion resistance afforded by polyurethane cover.
  • Non-marking non-perforated cover.
Electrical Data:
  • Resistance is less than 100,000 ohms per foot when tested with an ohmmeter, with normal open-circuit output voltage of 500 VDC.
  • Note: Conductivity is through the inner liner only. To dissipate static electricity, the hose must be fitted with a grounded conductive coupling. When measured through the wall of the hose, the product demonstrates electrical insulation.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
A4176-04X100 1/4" 6.5mm .500" 12.7mm 300 PSI 180 PSI 100 ft Coil 8 lbs.
A4176-04X500 1/4" 6.5mm .500" 12.7mm 300 PSI 180 PSI 500 ft Reel 44 lbs.
A4176-06X100* 3/8" 9.5mm .625" 15.9mm 300 PSI 180 PSI 100 ft Coil 11 lbs.
A4176-06X500* 3/8" 9.5mm .625" 15.9mm 300 PSI 180 PSI 500 ft Reel 58 lbs.
A4176-08X100 1/2" 12.7mm .813" 20.7mm 300 PSI 180 PSI 100 ft Coil 18 lbs.
A4176-08X500 1/2" 12.7mm .813" 20.7mm 300 PSI 180 PSI 500 ft Reel 93 lbs.
*Non stock item. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
