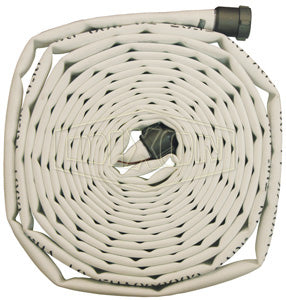

A525U50CBF Dixon 500# Single Jacket All-Polyester Fire Hose (UL Listed) - Coupled - Fem. x Male NST(NH) Expansion Ring Couplings (Brass) - 2-1/2" Hose Size - 2-13/16" Bowl Size - 50ft Length

A525U50CBF Dixon 500# Single Jacket All-Polyester Fire Hose (UL Listed) - Coupled - Fem. x Male NST(NH) Expansion Ring Couplings (Brass) - 2-1/2" Hose Size - 2-13/16" Bowl Size - 50ft Length

Save $53.43 Save $53.43
$480.84
$480.84 - $480.84
$480.84
$427.41
$427.41 - $427.41
$427.41

Dixon Fire Fittings
Fire Hose - 500# Single Jacket All Polyester Fire Hose (UL Listed) - Coupled
Specifications for Variant SKU: A525U50CBF Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 2.5in
Tubing Construction: EPDM
Cover Construction: Polyester Textile Braid
Ends Configuration: 2-1/2in Female NST, 2-1/2in Male NST
Features:
  • Underwriters (UL) Listed.
  • UL Labeled.
  • Outer construction: single jacket, all polyester.
  • Tube construction: EPDM rubber lining.
  • Proof pressure: 500 PSI.
  • Service test pressure: 250 PSI at ambient temperature 70°F (21°C).
  • Working pressure: 225 PSI at ambient temperature 70°F (21°C).
Part Number Size Bowl Length Weight
(Lbs.)
Coupled with Female x Male NST(NH) Brass Expansion Ring Couplings with Combo Lug
A515U50CBF 1-1/2" 1-3/4" 50 ft 12.8000
A525U50CBF 2-1/2" 2-13/16" 50 ft 22.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
