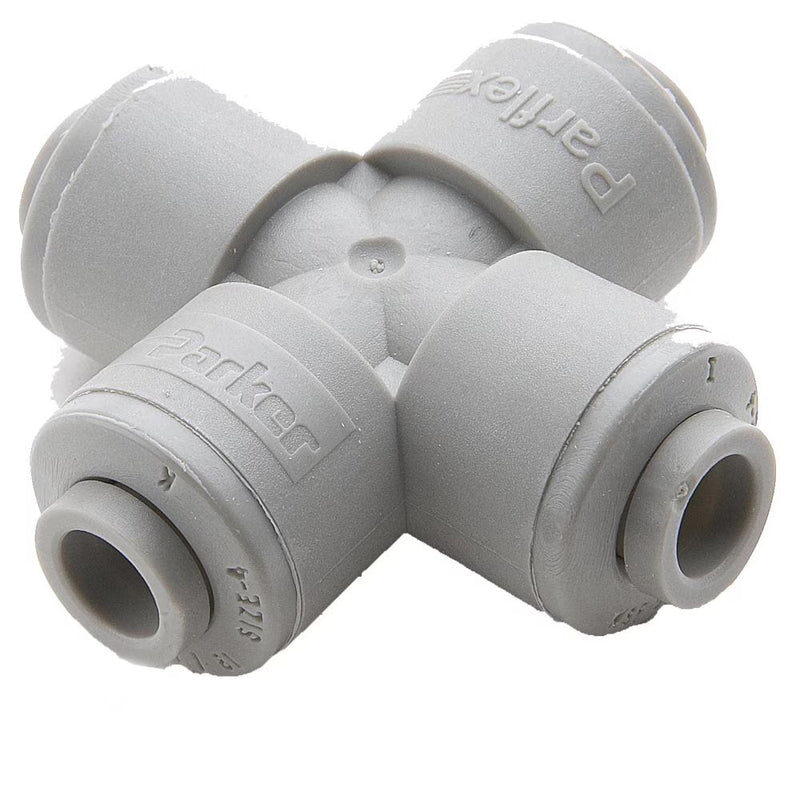

A6CU6-MG by Parker | TrueSeal™ Tube to Tube Union Fittings | 3/8" Push-to-Connect | Cross | Gray | Acetal

A6CU6-MG by Parker | TrueSeal™ Tube to Tube Union Fittings | 3/8" Push-to-Connect | Cross | Gray | Acetal

Save $0.40 Save $0.40
$5.15
$5.15 - $5.15
$5.15
$4.75
$4.75 - $4.75
$4.75

by Parker Hannifin
TrueSeal™ Fittings:CU - Cross Union
Specifications for Variant SKU: A6CU6-MG Parker
Brand: TrueSeal™
Series: CU Series
Shape (Orientation): Cross
Material(s): Acetal
Seal Material(s): EPDM
Special Properties: Food Grade, Filtration
Product Features:
  • Acetal and Black Polypropylene (EPDM seals and metal gripping collet standard
  • White Polypropylene (EPDM seals and plastic gripping collet standard
  • Black Kynar (Fluorocarbon (FKM) seals and black kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or with an engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets:
  • Food
  • Potable Water
  • Chemical
  • Filtration
Applications:
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range: Acetal and Kynar:
  • 1/4", 5/16", 3/8" Vacuum to 300 PSI (20.7 bar) 1/2" Vacuum to 250 PSI (17.2 bar)
    • Polypropylene:
  • 1/4", 3/8", 1/2" Vacuum to 150 PSI (10.3 bar)
Temperature Range:
Acetal:
  • -20° to +180° F (-28.9° to +82.2° C)
    		•
    Polypropylene:
  • 0° to +225° F (-17.8° to +107.2° C)
    		•  Kynar:
  • 0° to +275° F (-17.8° to +135° C)
    		•
    Compatible Tubing:
    • Polyethylene
    • Polypropylene**
    • Nylon**
    • Vinyl+
    • Fluoropolymer**
    • Polyurethane+
    • *Kynar®

    * Registered trademark of The Arkema Group.
    ** Metal gripper required (-MG & -HBLK suffix).
    + Tube Support required.

    Gray Acetal EPDM Seal Nom. Tube O.D. M Flow Diameter (D)
    A4CU4-MG 1/4" .91" .175
    A6CU6-MG 3/8" 1.08" .250
