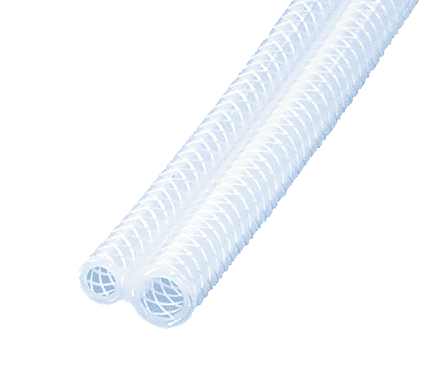

A9350-04060-04S Kuriyama Kuri Tec A9350 Series Polyethylene Yarn-Reinforced Dual Line Spray Hose - Line 1-1/4" ID - .457" OD, Line 2 - 3/8" ID - .593" OD - 400ft

A9350-04060-04S Kuri-Tec by Kuriyama | A9350 Series | Yarn-Reinforced Dual Line Spray Hose | Line 1-1/4" ID | .457" OD, Line 1 | 3/8" ID | .593" OD, Line 2 | Polyethylene | 400ft Length

Save $253.44 Save $253.44
$887.04
$887.04 - $887.04
$887.04
$633.60
$633.60 - $633.60
$633.60

Kuriyama Kuri Tec® A9350 Series Polyethylene Yarn-Reinforced Dual Line Spray Hose Special light weight dual line reinforced hose which offers chemical resistance along with ease of handling for spraying of herbicides and fertilizers.

Package Quantity: 400 FT

Specifications for Variant SKU: A9350-04060-04S Kuriyama | 400 |
Brand: Kuri Tec
Series: A9350 Series
Hose Color(s): White/Off-White
Internal Diameter: 0.375in, 1.25in
Outer Diameter: 0.457in, 0.593in
Tubing Construction: LLDPE
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Spot herbicide treatment, while fertilizing, Automatic dilution of liquid concentrate at the spray head. SAE Rating: N/A
Other Ratings: N/A Tube: Special translucent LLDPE
Reinforcement: High tensile strength yarn. Cover: Special "low friction" translucent copolymer.
Temperature Range: -30 deg. F (-35 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Extremely light weight.
  • Exceptionally low resistance to dragging.
  • Both core and cover offer excellent chemical-resistance and resistance to environmental stress cracking.
  • Silicone-free.
  • One-piece lengths.
Line 1 Line 2
Part Number Nominal ID Nominal OD Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) (in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil
A9350-04060-03S 1/4" 6.5mm .457" 11.6mm 3/8" 9.5mm .593" 15.1mm 250 PSI 100 PSI 300 ft 37 lbs.
A9350-04060-04S 1/4" 6.5mm .457" 11.6mm 3/8" 9.5mm .593" 15.1mm 250 PSI 100 PSI 400 ft 49 lbs.
A9350-04080-03S 1/4" 6.5mm .457" 11.6mm 1/2" 12.7mm .740" 18.8mm 250 PSI 100 PSI 300 ft 46 lbs.
A9350-04080-04S* 1/4" 6.5mm .457" 11.6mm 1/2" 12.7mm .740" 18.8mm 250 PSI 100 PSI 400 ft 61 lbs.
* Non stock item. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
