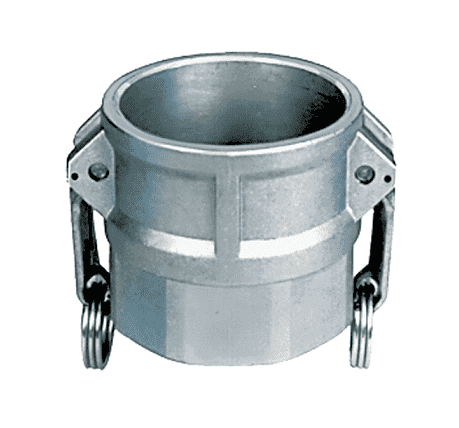

ALSH-D300 by Kuriyama | Quick-Acting Coupling | Part D | 3" Female Coupler x 3" Female NPT | Aluminum

ALSH-D300 by Kuriyama | Quick-Acting Coupling | Part D | 3" Female Coupler x 3" Female NPT | Aluminum

Save $13.82 Save $13.82
$48.36
$48.36 - $48.36
$48.36
$34.54
$34.54 - $34.54
$34.54

Kuriyama Couplings™ - Quick-Acting Couplings - Part B - Female Coupler x Female NPT - Aluminum

Specifications for Variant SKU: ALSH-D300 Kuriyama
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 3in Female Cam & Groove, 3in Female NPT
Material(s): Aluminum, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2"
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • TType 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
ALSH-D100 1" x 1" 0.36 lbs
ALSH-D125 1-1/4" x 1-1/4" 0.62 lbs
ALSH-D150 1-1/2" x 1-1/2" 0.70 lbs
ALSH-D200 2" x 2" 0.86 lbs
ALSH-D250 2-1/2" x 2-1/2" 1.02 lbs
ALSH-D300 3" x 3" 1.56 lbs
ALSH-D400 4" x 4" 2.42 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
